CP-100-100-25-030-H-SA - Datasheet

MBA

Category Information

Couplings - Helical - Standard

Standard Helical Couplings. 0.1 to 16.2 Nm.

  • An expanded range may be available on special order. Please enquire.
  • Zero backlash.
  • Max. Ang Misalignment 5 Degree
  • Max Parallel Offset 0.25mm.

Product Data

  • Bore (B1) : 10.000 mm
  • Bore (B2) 10.000 mm
  • OD (D) / Clearance Dia (H) 25.000 mm
  • Length (L) 30.000 mm
  • Max. Momentary Dyn. Torque 1.1 N.m
  • Hub Config/Hub Diameter Clamp Hub / 25.0 mm
  • Torsional Flexibility 210.0 Arc.Min / N.m
  • Material Aluminium 7075-T6
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 2463K38
    • S50HAWM25H1010
    View full details

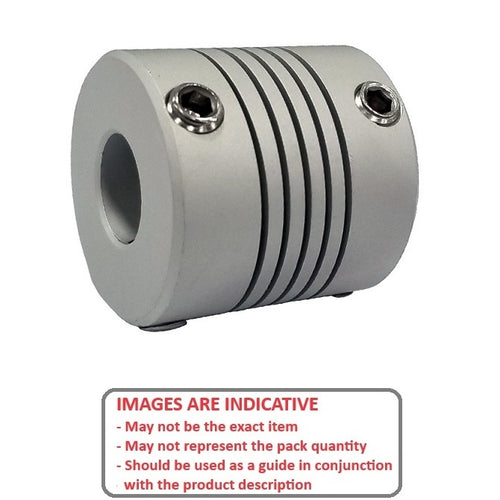

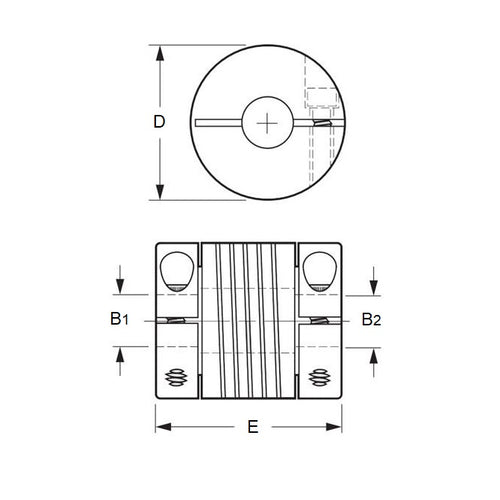

    CP-100-100-25-030-H-SADiagramCP-100-100-25-030-H-SAImage
