COL-00475-010-06-IS-S3 - Datasheet
MBA
Category Information

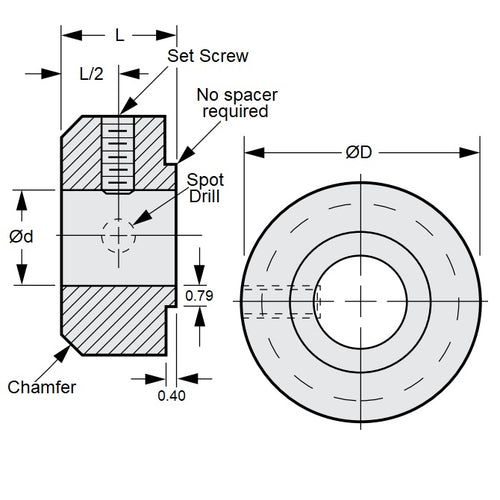

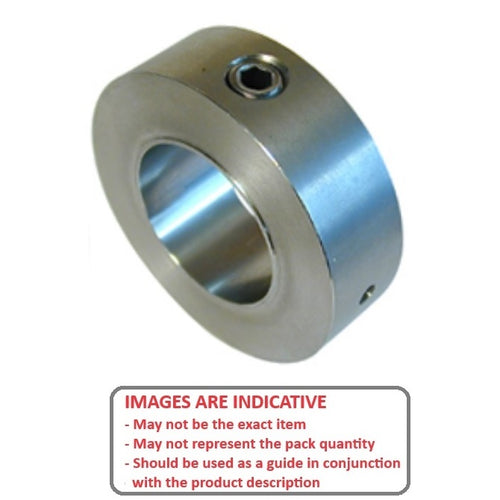

Collars - Shaft - With Integral Shim- Bore tolerance (+0.003/+0.013).
- Imperial Collars have undersized tolerances.
- Metric Collars have oversized tolerances.
Product Data
- Shaft Size (d)
:
4.763
mm
(Equiv. 0.188 in.) - Outside Diameter (D)
9.50
mm
(Equiv. 0.374 in.) - Overall Width (S)
5.6
mm
(Equiv. 0.22 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S25CY9-PC1212
- S25CY9PC1212
