COL-01900-038-14-IS-S3 - Datasheet
MBA
Category Information

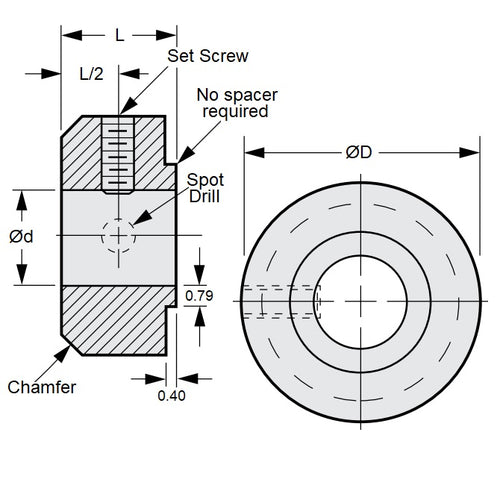

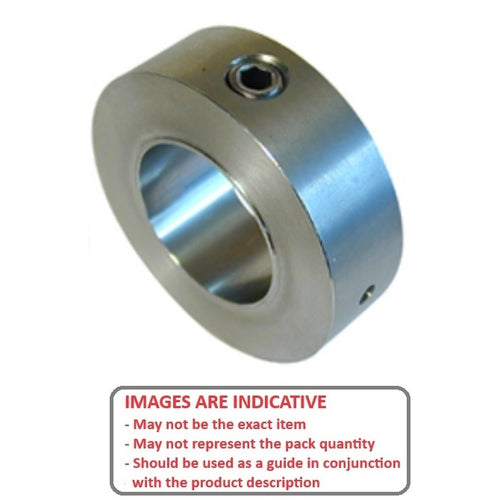

Collars - Shaft - With Integral Shim- Bore tolerance (+0.003/+0.013).
- Imperial Collars have undersized tolerances.
- Metric Collars have oversized tolerances.
Product Data
- Shaft Size (d)
:
19.000
mm
(Equiv. 0.748 in.) - Outside Diameter (D)
38.00
mm
(Equiv. 1.496 in.) - Overall Width (S)
14.0
mm
(Equiv. 0.551 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S25CY9MPC1938
