Miniature Bearings Australia
COL-01500-032-12-IS-S3 - Datasheet
MBA
Category Information

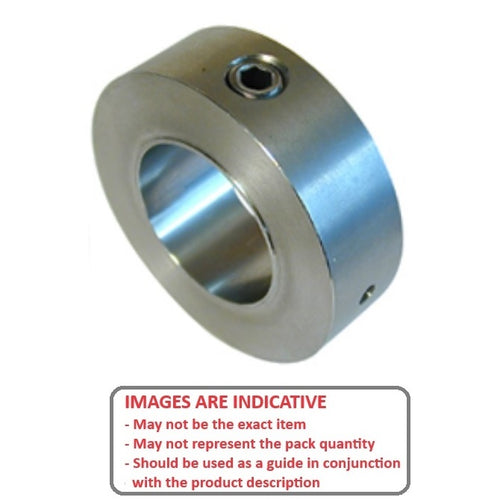

Collars - Shaft - With Integral Shim- Bore tolerance (+0.003/+0.013).
- Imperial Collars have undersized tolerances.
- Metric Collars have oversized tolerances.

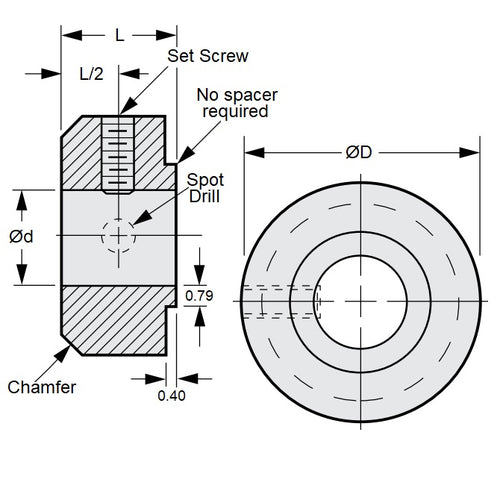

Product Data
- Shaft Size (d)
:
15.000
mm
(Equiv. 0.591 in.) - Outside Diameter (D)
32.00
mm
(Equiv. 1.26 in.) - Overall Width (S)
12.0
mm
(Equiv. 0.472 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S25CY9MPC1532
