COL-20000-250-24-MS - Datasheet
MBA
Category Information

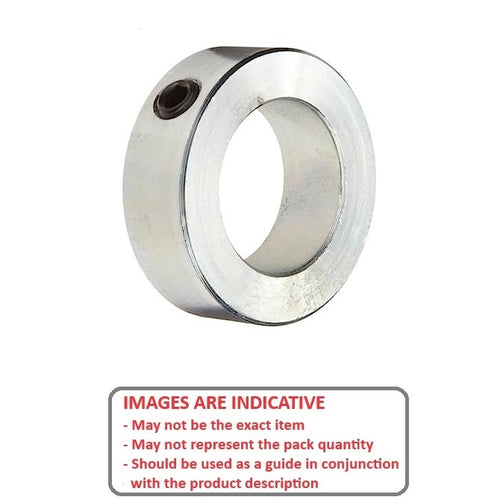

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
200.000
mm
(Equiv. 7.874 in.) - Outside Diameter (D)
250.00
mm
(Equiv. 9.843 in.) - Overall Width (S)
24.0
mm
(Equiv. 0.945 in.) - Screw Size M12
- Static Torque 2660.00 Nm
- Static Axial Thrust Load 26000.0 N
- Material Steel - Mild
Product Compliance and Data
Additional Resources
Cross References
- CJ200
