Miniature Bearings Australia

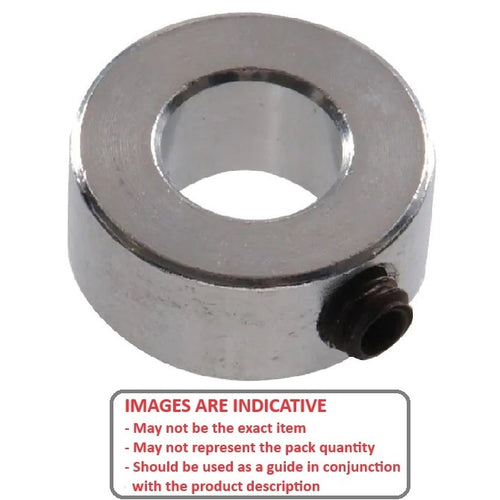

COL-00200-009-03-CC - Datasheet
MBA
Category Information
Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
2.000
mm
+ 0.014 / - 0.000
(Equiv. 0.079 in.) - Outside Diameter (D)
9.00
mm
(Equiv. 0.354 in.) - Overall Width (S)
3.5
mm
(Equiv. 0.138 in.) - Collar Style Plain Collar
- Material Steel, Cadmium Plated
Product Compliance and Data
Additional Resources
Cross References
- A7Z2M109020
