COL-01600-028-12-CC - Datasheet
MBA
Category Information

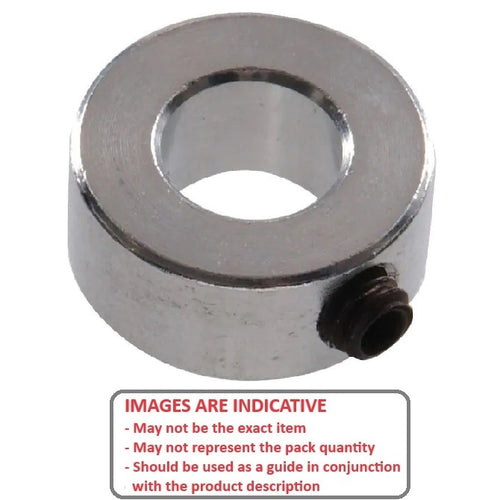

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Shaft Size (d)
:
16.000
mm
+ 0.027 / - 0.000
(Equiv. 0.63 in.) - Outside Diameter (D)
28.00
mm
(Equiv. 1.102 in.) - Overall Width (S)
12.0
mm
(Equiv. 0.472 in.) - Collar Style Plain Collar
- Material Steel, Cadmium Plated
Product Compliance and Data
Additional Resources
Cross References
- A7C2M128160
