COL-00800-020-08-S3 - Datasheet
MBA
Category Information

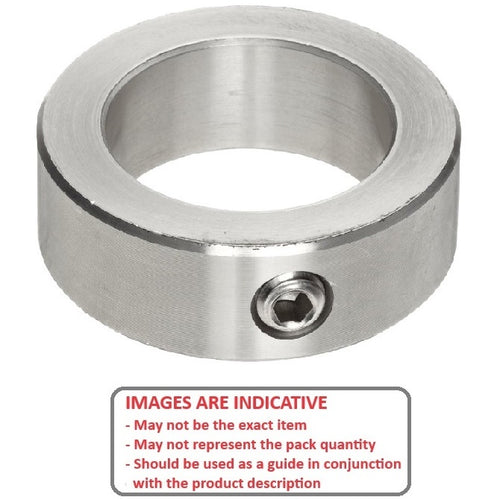

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
8.000
mm
(Equiv. 0.315 in.) - Outside Diameter (D)
20.00
mm
(Equiv. 0.787 in.) - Overall Width (S)
8.0
mm
(Equiv. 0.315 in.) - Screw Size M4 (4x0.7mm)
- Static Torque 12.50 Nm
- Static Axial Thrust Load 3000.0 N
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- CJ8
