COL-01270-025-13-S3 - Datasheet
MBA
Category Information

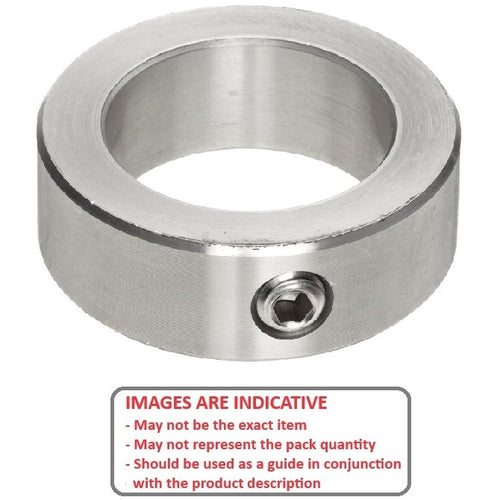

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (D)
25.40
mm
(Equiv. 1 in.) - Overall Width (S)
12.7
mm
(Equiv. 0.5 in.) - Collar Style Plain Collar - Precision
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- S5000Y-50032
- S5000Y50032
