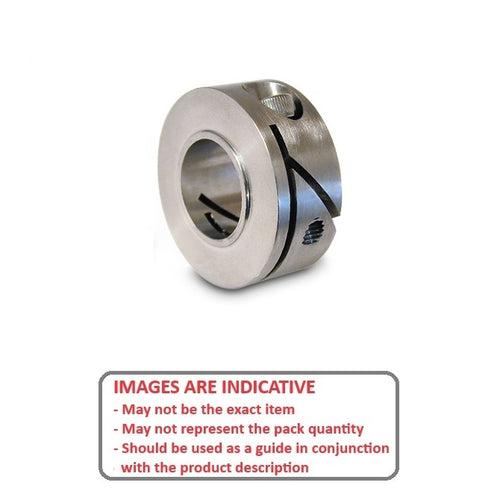

COL-00400-013-07-FC-S3 - Datasheet

MBA

Product Data

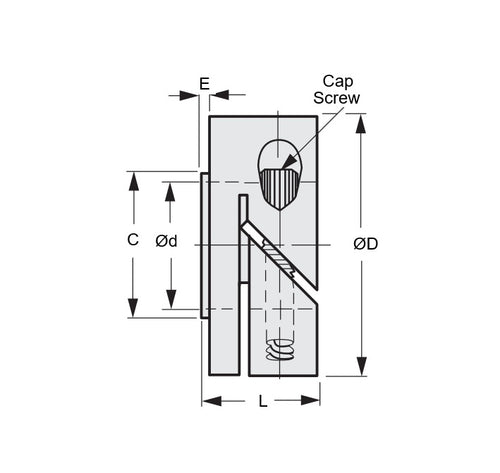

• Shaft Size (d) : 4.000 mm _{+0.018/-0.000}
  (Equiv. 0.157 in.)
• Outside Diameter (D) 12.50 mm
  (Equiv. 0.492 in.)
• Overall Width (S) 7.0 mm
  (Equiv. 0.276 in.)
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FY9MPC0412
