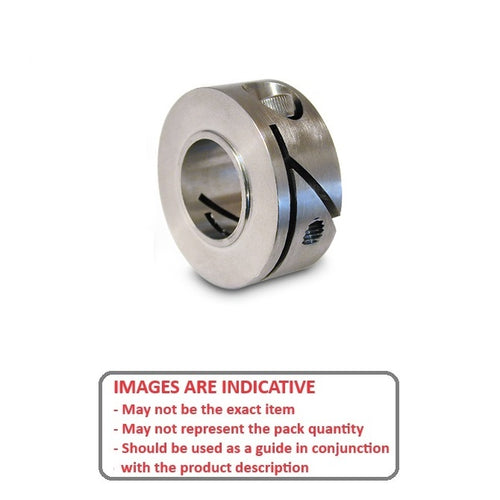

COL-00305-011-07-FC-S3 - Datasheet

MBA

Product Data

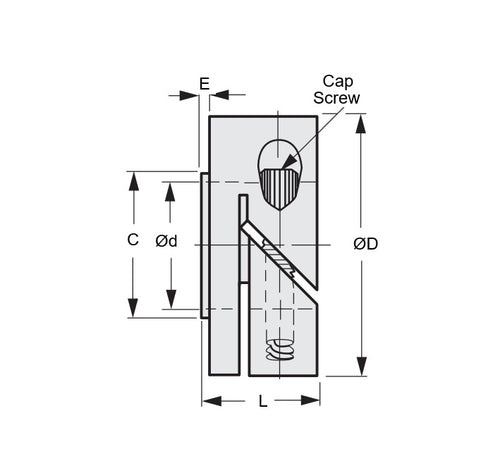

• Shaft Size (d) : 3.048 mm _{+ 0.025 / - 0.000}
  (Equiv. 0.12 in.)
• Outside Diameter (D) 11.00 mm
  (Equiv. 0.433 in.)
• Overall Width (S) 7.0 mm
  (Equiv. 0.276 in.)
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FY9-PC12015
• S25FY9PC12015
