CCI-09800-S15 - Datasheet
MBA
Category Information

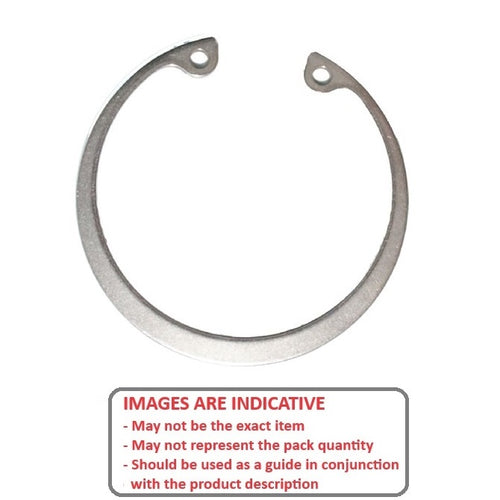

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
98.00
mm
(Equiv. 3.858 in.) - Clip Thickness (T)
3.00
mm
+ 0.35 / - 0.00
(Equiv. 0.118 in.) - Groove Dia. (Dg)
101.50
mm
+ 0.00 / - 0.08
(Equiv. 3.996 in.) - Approx. Loose Circlip OD (Dr) 103.50 mm + 1.30 / - 0.54
- Groove Width (W) 3.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 79.00 mm
- Clearance in Groove (C1) 83.50 mm
- Min. Lug Diameter (h) 3.50 mm
- Min. Extension (n) 5.30
- Standard DIN472
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-098-SS
- Bossard BN-822-098-SS
- Waldes D1300-098-SS
- NoCor DHO-098-SS
- Rotor Clip DHO-098-SS
- Seeger J-098-SS
- Seeger J98X3-411
- 1300-0980KSF
- 13000980KSF
- J098SS
- J98X3411
- DHO098SS
- D1300-0980KSF
- D1300098SS
- D13000980KSF
- 472098SS
- BN822098SS
