CCI-05400-S15 - Datasheet
MBA
Category Information

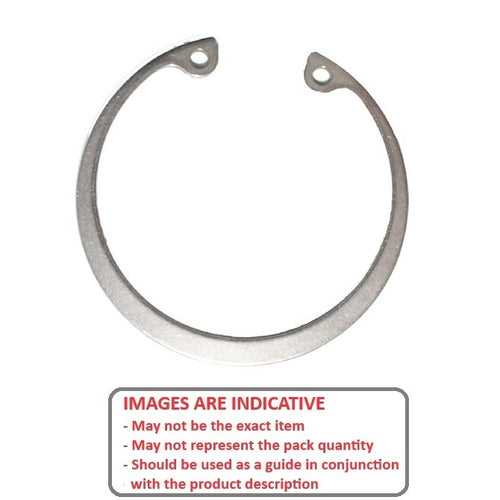

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
54.00
mm
(Equiv. 2.126 in.) - Clip Thickness (T)
2.00
mm
+ 0.30 / - 0.00
(Equiv. 0.079 in.) - Groove Dia. (Dg)
57.00
mm
+ 0.00 / - 0.07
(Equiv. 2.244 in.) - Approx. Loose Circlip OD (Dr) 58.20 mm + 1.10 / - 0.46
- Groove Width (W) 2.15 mm + 0.13 / - 0.00
- Standard DIN472
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-054-SS
- Bossard BN-822-054-SS
- Waldes D1300-054-SS
- NoCor DHO-054-SS
- Rotor Clip DHO-054-SS
- Seeger J-054-SS
- Seeger J54K500-S
- Seeger J54X2-411
- Seeger J54X2SS
- D1300054SS
- D13000540KSF
- D1300-0540KSF
- J054SS
- J54K500S
- J54X2411
- DHO054SS
- 472054SS
- BN822054SS
