CCI-10300-C - Datasheet
MBA
Category Information

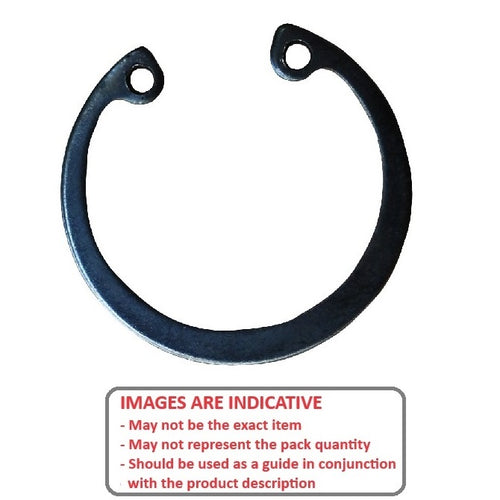

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
103.00
mm
(Equiv. 4.055 in.) - Clip Thickness (T)
4.00
mm
+ 0.54 / - 0.00
(Equiv. 0.157 in.) - Groove Dia. (Dg)
108.00
mm
+ 0.00 / - 0.10
(Equiv. 4.252 in.) - Approx. Loose Circlip OD (Dr) 110.76 mm + 1.30 / - 0.54
- Groove Width (W) 4.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 83.00 mm
- Clearance in Groove (C1) 88.00 mm
- Min. Lug Diameter (h) 3.500 mm
- Min. Extension (n) 6.00
- Standard DIN472
- Material Carbon Spring Steel Self Finish
