DAK-067 - Datasheet

MBA

Category Information

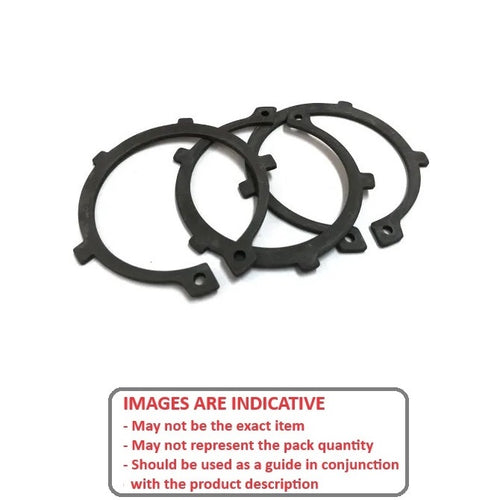

Retaining Rings - External - Circlips - Tabbed

Tabbed Circlips External Retaining Rings. DIN 983 / D2100 / AK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • External tabs are concentrically positioned for positioning in a concealed assembly.
  • Tabs act as spacers for securing machine components.
  • Conforming to DIN 983.

Product Data

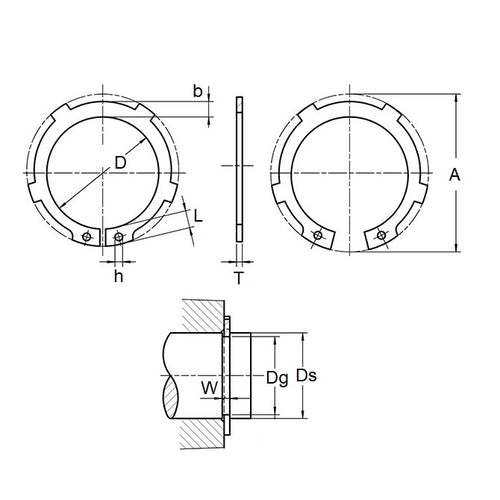

  • Shaft Diameter (Ds) : 67.00 mm
    (Equiv. 2.638 in.)
  • Clip Thickness (T) 2.50 mm + 0.00 / - 0.30
    (Equiv. 0.098 in.)
  • Groove Dia. (Dg) 64.00 mm + 0.00 / - 0.07
    (Equiv. 2.52 in.)
  • Approx. Loose Circlip ID (A) 61.40 - 62.96 mm
  • Groove Width (W) 2.65 mm
  • Tool PRS-E023
  • Material Carbon Spring Steel
Country of Origin: US
