DAK-140 - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Tabbed

Tabbed Circlips External Retaining Rings. DIN 983 / D2100 / AK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • External tabs are concentrically positioned for positioning in a concealed assembly.
  • Tabs act as spacers for securing machine components.
  • Conforming to DIN 983.

Product Data

  • Shaft Diameter (Ds) : 140.00 mm
    (Equiv. 5.512 in.)
  • Clip Thickness (T) 4.00 mm + 0.00 / - 0.50
    (Equiv. 0.157 in.)
  • Groove Dia. (Dg) 136.00 mm + 0.00 / - 0.10
    (Equiv. 5.354 in.)
  • Approx. Loose Circlip ID (A) 131.70 - 133.54 mm
  • Groove Width (W) 4.15 mm
  • Tool PRR-E035
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

View full details

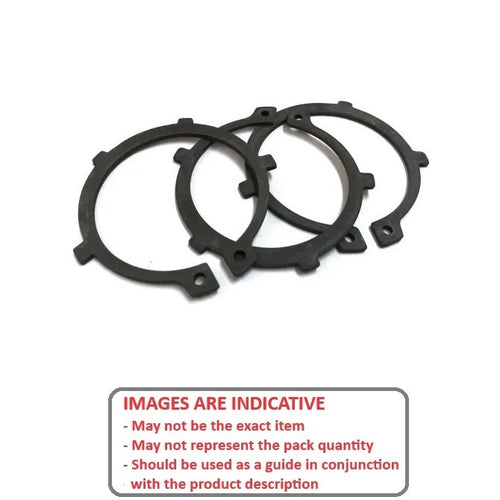

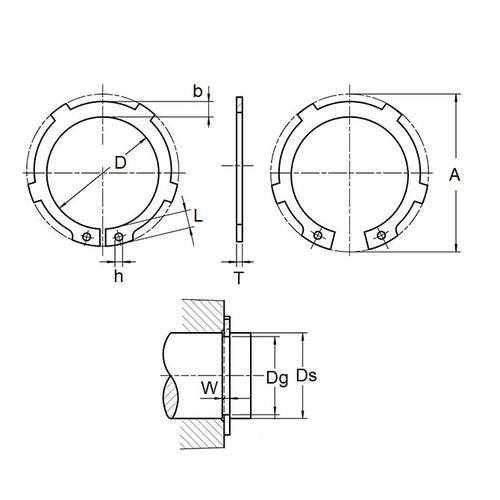

DAK-140DiagramDAK-140Image
