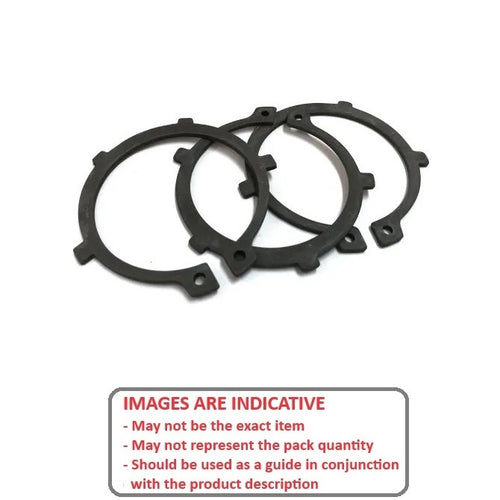

Retaining Rings - External - Circlips - Tabbed

Tabbed Circlips External Retaining Rings. DIN 983 / D2100 / AK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • External tabs are concentrically positioned for positioning in a concealed assembly.
  • Tabs act as spacers for securing machine components.
  • Conforming to DIN 983.

Product Data

  • Shaft Diameter (Ds) : 100.00 mm
    (Equiv. 3.937 in.)
  • Clip Thickness (T) 3.00 mm + 0.00 / - 0.35
    (Equiv. 0.118 in.)
  • Groove Dia. (Dg) 96.50 mm + 0.00 / - 0.08
    (Equiv. 3.799 in.)
  • Approx. Loose Circlip ID (A) 93.20 - 95.04 mm
  • Groove Width (W) 3.15 mm
  • Tool PRS-E032
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

View full details

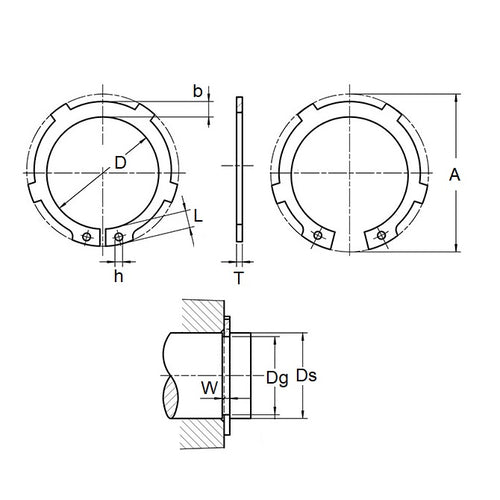

DAK-100DiagramDAK-100Image
