CEB-03967-C - Datasheet
MBA
Category Information

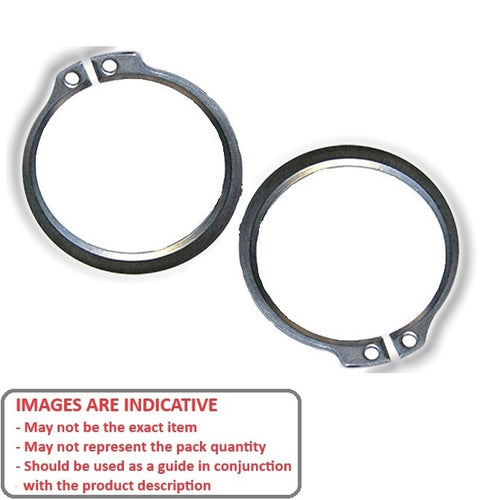

Retaining Rings - External - Circlips - BevelledBevelled Circlips External Retaining Rings. N1402 / VSH / 5102 / 16630. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the inside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data
- Shaft Diameter (Ds)
:
39.67
mm
(Equiv. 1.562 in.) - Clip Thickness (T)
1.57
mm
+ 0.00 / - 0.13
(Equiv. 0.062 in.) - Groove Dia. (Dg)
37.06
mm
+/- 0.08

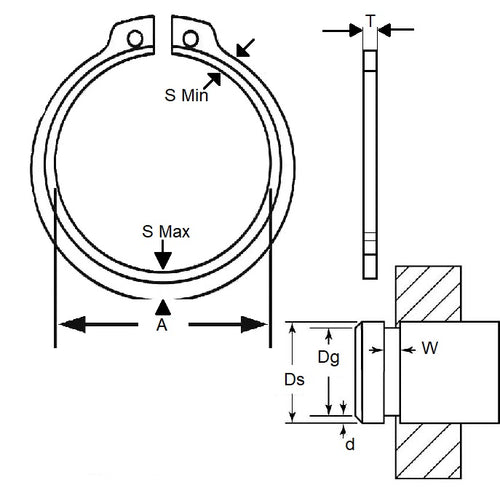

(Equiv. 1.459 in.) - Approx. Loose Circlip ID (A) 36.22 mm + 0.84 / - 0.00
- Radial Wall (S) min/max 2.36 - 4.37 mm
- Groove Width (W) 1.35 mm + 0.05 / - 0.00
- Tool PRS-E115
- Material Carbon Spring Steel Self Finish
