CEB-02699-C - Datasheet
MBA
Category Information

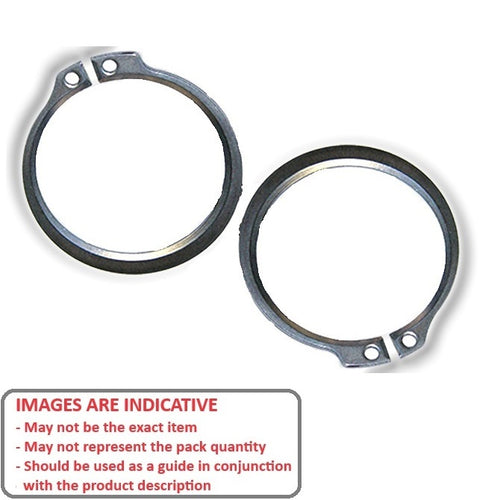

Retaining Rings - External - Circlips - BevelledBevelled Circlips External Retaining Rings. N1402 / VSH / 5102 / 16630. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the inside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data

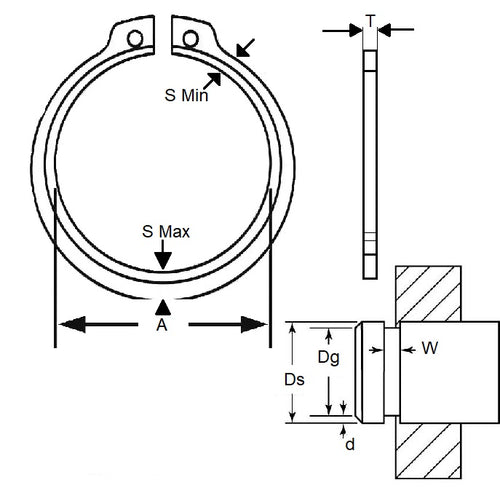

- Shaft Diameter (Ds)
:
26.99
mm
(Equiv. 1.063 in.) - Clip Thickness (T)
1.27
mm
+ 0.00 / - 0.10
(Equiv. 0.05 in.) - Groove Dia. (Dg)
25.20
mm
+/- 0.05
(Equiv. 0.992 in.) - Approx. Loose Circlip ID (A) 24.56 mm + 0.63 / - 0.00
- Radial Wall (S) min/max 1.75 - 3.10 mm
- Groove Width (W) 1.12 mm + 0.05 / - 0.00
- Tool PRS-E070
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- NoCor VSH-106
- N14020106
- N1402-0106
- VSH106
