GE-01600-03200-W300 - Datasheet
Iglidur
Category Information

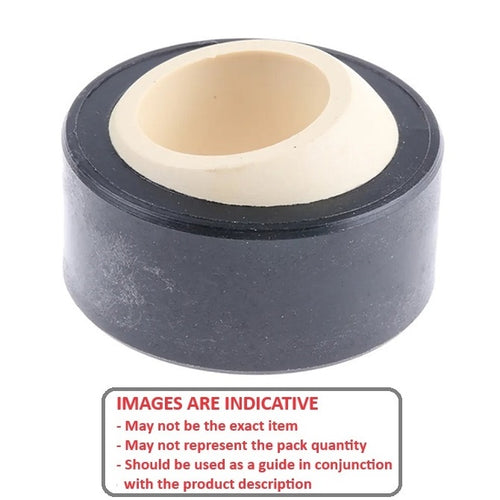

Bushings - Spherical - PlasticPlastic Spherical Bushings. Plastic spherical plain bearings. Also known as ball bushings.
- Self-aligning bearing that has spherical inner and outer rings, allowing it to handle both large radial and axial loads simultaneously.
- Used in applications with slow swinging movements or where misalignment must be compensated for, such as in control linkages, suspension components, and industrial machinery.
- Designed to reduce vibration and noise by allowing articulating motion in a fixed directional load.
- Ball Material W300. Housing Iglidur G.
- Maintenance Free. Self lubricating.
- Compensates for axial loads and misalignment.
- Corrosion resistant.
- High vibration dampening capacity.
Product Data

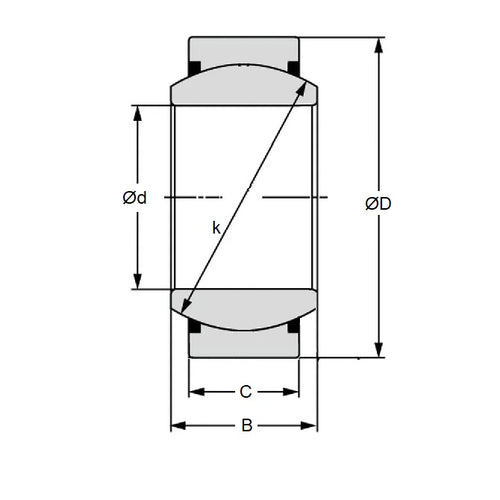

- Bore (d1)
:
16.000
mm
+ 0.032 / + 0.102
(Equiv. 0.63 in.) - OD (d2)
32.000
mm
(Equiv. 1.26 in.) - Width (B)
21.000
mm
(Equiv. 0.827 in.) - Outer Width (C) 15.00 mm
- Max Pivot angle 23 Deg.
- Max Torque 40.0 Nm
- Max Static Comp. str. (Radial) 7500 N
- Max Static Comp. str. (Axial) 1800 N
- Material W300 Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus KGLM-16
- KGLM16
- I-586
- I586
