BF0060-0072-0052-PC2 - Datasheet

Iglidur

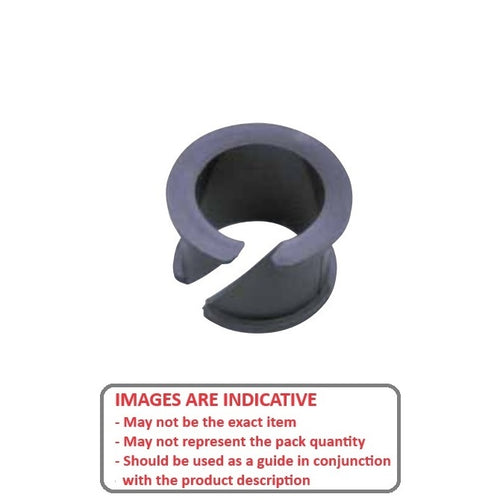

Double Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.

Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
Light weight
M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

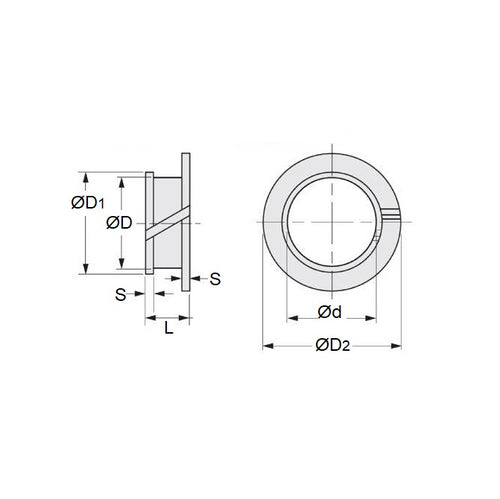

Nominal Inside Diameter (d) : 6.000 mm _{+0.030 / +0.105}
(Equiv. 0.236 in.)
Nominal Outside Diameter (D) 7.200 mm
(Equiv. 0.283 in.)
Overall Length 5.200 mm _{+0.000 / +0.200}
(Equiv. 0.205 in.)
Large Flange Dia 11.000 mm
Flange Width (S) 0.6 mm +0.000 / -0.100
Small Flange Dia 7.800 mm
Min Housing Bore 5.800 mm
Max Housing Bore 7.200 mm
Min Shaft Size 5.975 mm
Max Shaft Size 6.000 mm
Sheet Metal Thickness 3.45 to 3.92
Material Plastic

Country of Origin: DE
