BF0250-0270-0050-PC2 - Datasheet

Iglidur

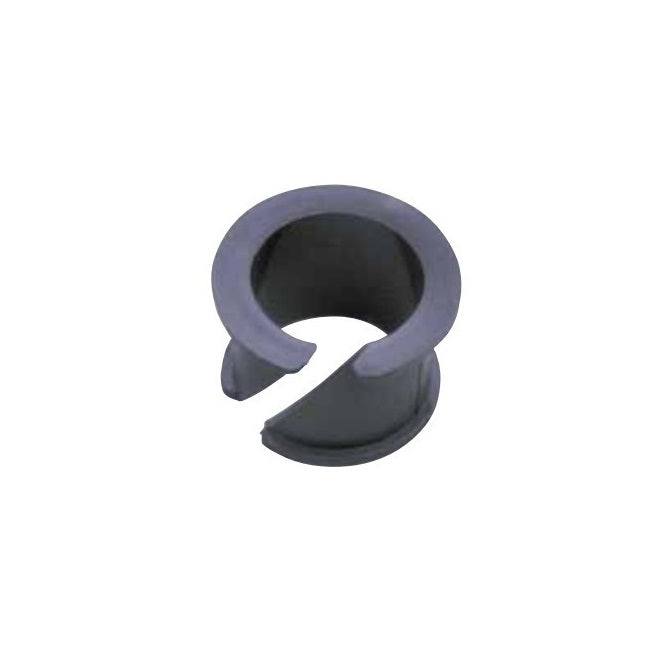

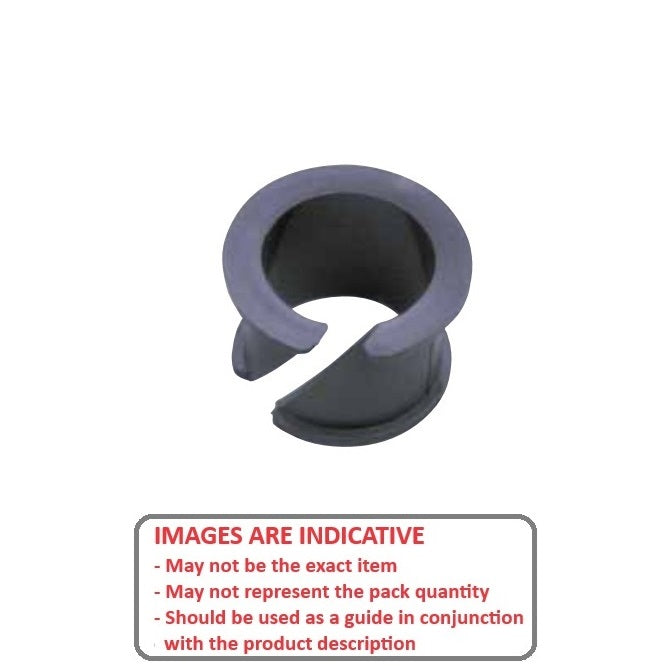

Double Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.

Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
Light weight
M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

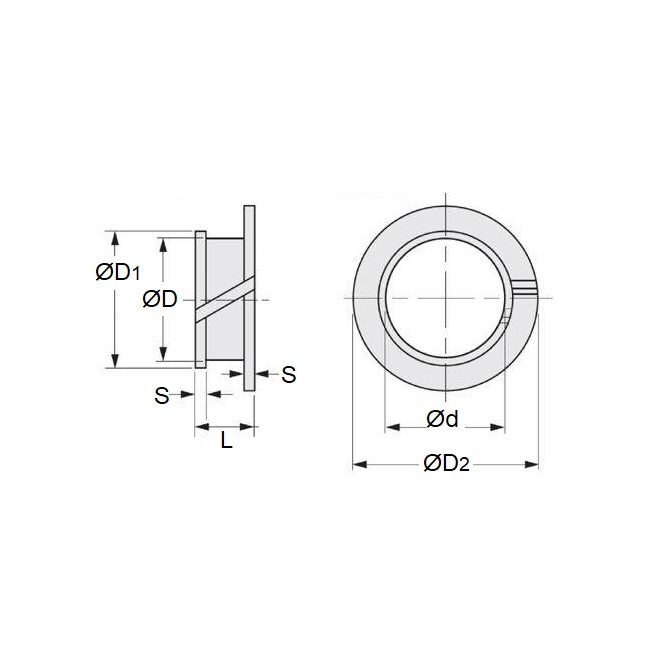

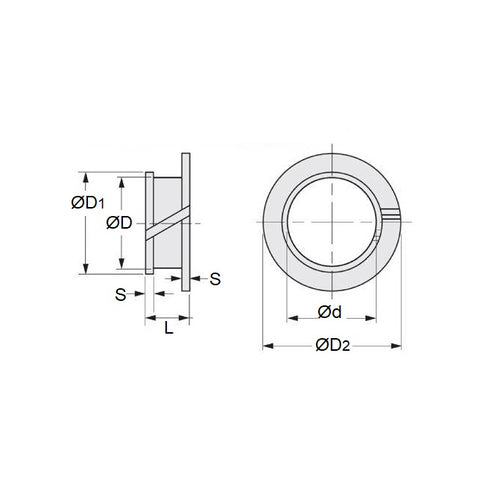

Nominal Inside Diameter (d) : 25.000 mm _{+0.065 / +0.195}
(Equiv. 0.984 in.)
Nominal Outside Diameter (D) 27.000 mm
(Equiv. 1.063 in.)
Overall Length 5.000 mm _{+0.000 / +0.200}
(Equiv. 0.197 in.)
Large Flange Dia 30.000 mm
Flange Width (S) 1.0 mm +0.000 / -0.100
Small Flange Dia 28.000 mm
Min Housing Bore 26.670 mm
Max Housing Bore 27.000 mm
Min Shaft Size 24.975 mm
Max Shaft Size 25.000 mm
Sheet Metal Thickness 2.45 to 2.92
Material Plastic

Country of Origin: DE
