BF0140-0156-0046-PC2 - Datasheet

Iglidur

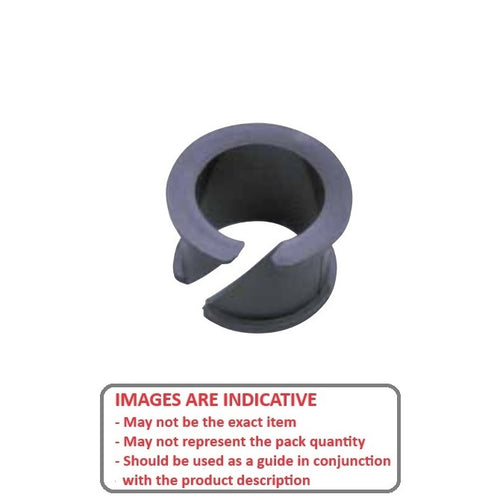

Double Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.

Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
Light weight
M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

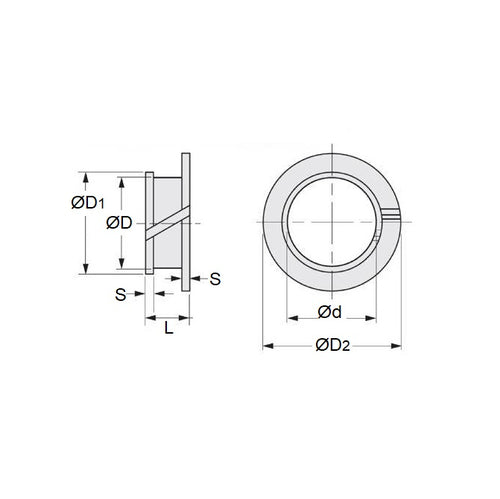

Nominal Inside Diameter (d) : 14.000 mm _{+0.050 / +0.160}
(Equiv. 0.551 in.)
Nominal Outside Diameter (D) 15.600 mm
(Equiv. 0.614 in.)
Overall Length 4.600 mm _{+0.000 / +0.200}
(Equiv. 0.181 in.)
Large Flange Dia 19.000 mm
Flange Width (S) 0.8 mm +0.000 / -0.100
Small Flange Dia 16.400 mm
Min Housing Bore 15.330 mm
Max Housing Bore 15.600 mm
Min Shaft Size 13.975 mm
Max Shaft Size 14.000 mm
Sheet Metal Thickness 2.45 to 2.92
Material Plastic

Country of Origin: DE
