BF0120-0136-0056-PC2 - Datasheet

Iglidur

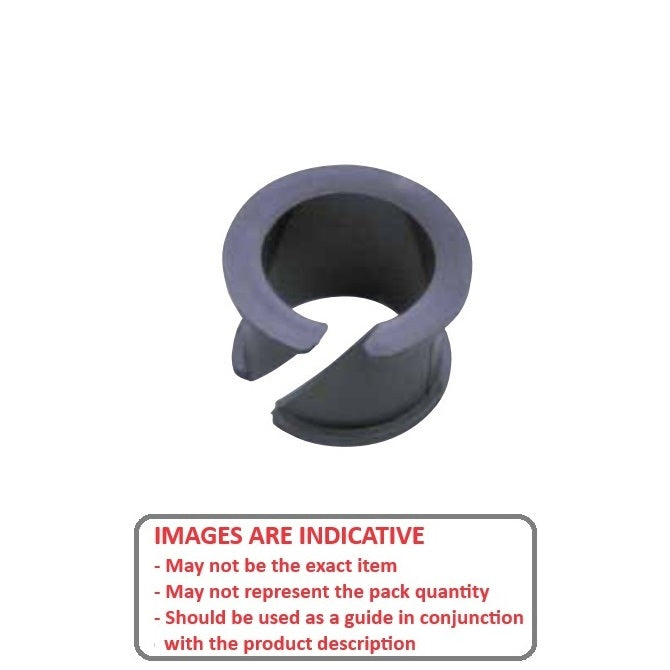

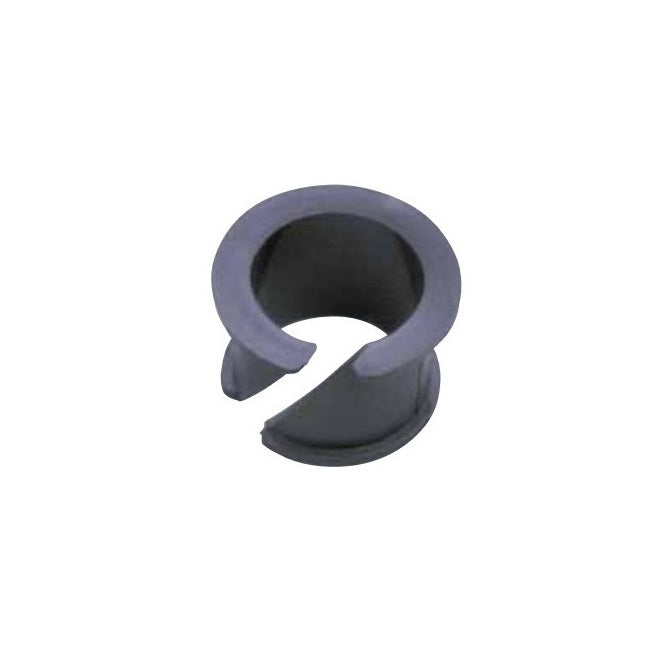

Double Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.

Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
Light weight
M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

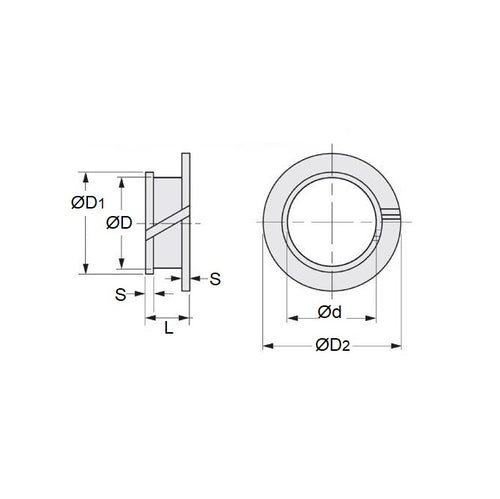

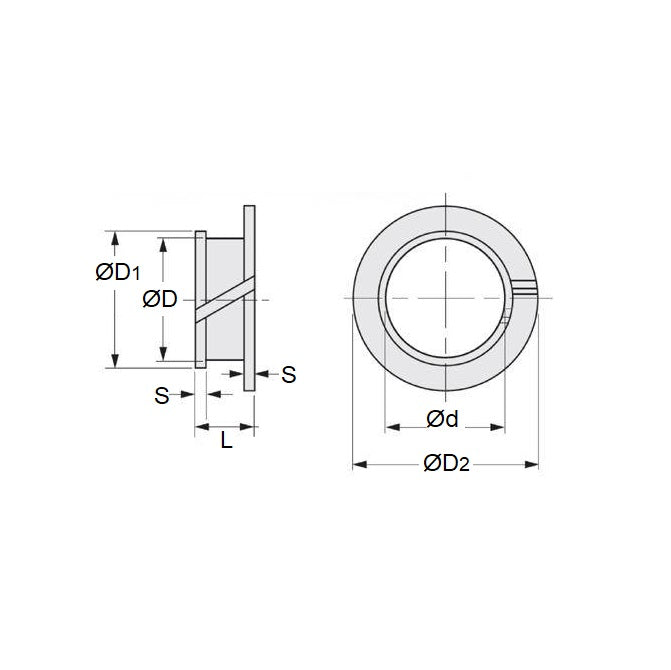

Nominal Inside Diameter (d) : 12.000 mm _{+0.050 / +0.160}
(Equiv. 0.472 in.)
Nominal Outside Diameter (D) 13.600 mm
(Equiv. 0.535 in.)
Overall Length 5.600 mm _{+0.000 / +0.200}
(Equiv. 0.22 in.)
Large Flange Dia 17.000 mm
Flange Width (S) 0.8 mm +0.000 / -0.100
Small Flange Dia 14.400 mm
Min Housing Bore 13.330 mm
Max Housing Bore 13.600 mm
Min Shaft Size 11.975 mm
Max Shaft Size 12.000 mm
Sheet Metal Thickness 3.45 to 3.92
Material Plastic

Country of Origin: DE
