BF0095-0111-0035-PC2 - Datasheet

Iglidur

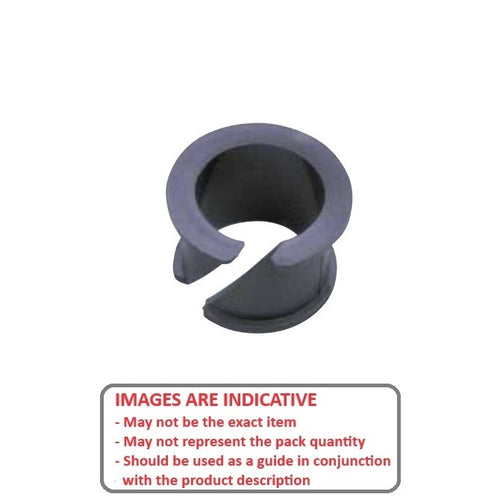

Double Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.

Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
Light weight
M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

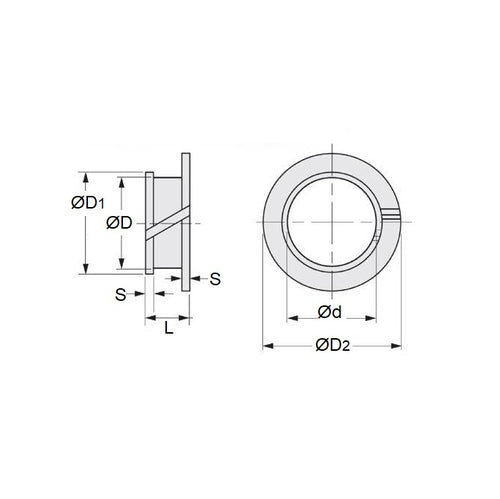

Nominal Inside Diameter (d) : 9.525 mm _{+0.040 / +0.130}
(Equiv. 0.375 in.)
Nominal Outside Diameter (D) 11.113 mm
(Equiv. 0.438 in.)
Overall Length 3.505 mm _{+0.000 / +0.200}
(Equiv. 0.138 in.)
Large Flange Dia 14.288 mm
Flange Width (S) 0.8 mm +0.000 / -0.100
Small Flange Dia 11.906 mm
Min Housing Bore 10.843 mm
Max Housing Bore 11.113 mm
Min Shaft Size 9.500 mm
Max Shaft Size 9.525 mm
Sheet Metal Thickness 1.02 to 1.91
Material Plastic

Country of Origin: DE
