BF0080-0096-0090-PCB - Datasheet

Iglidur

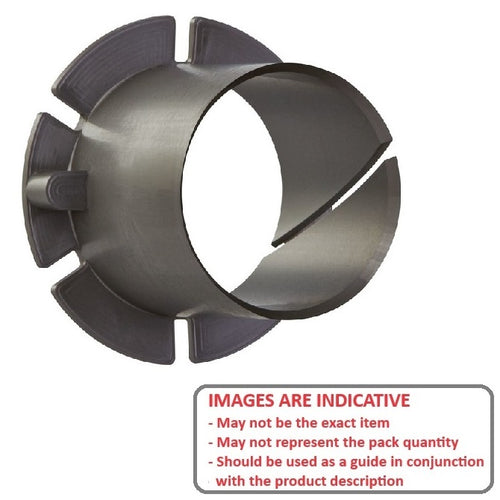

Bevelled Edge Clip Bushes. Used as a light duty split bearing.

Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
Light weight.
M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

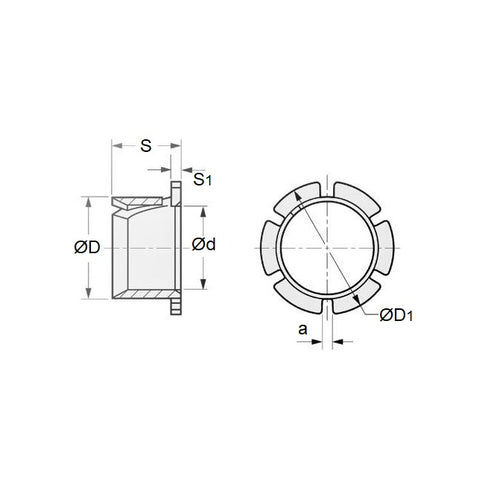

Nominal Inside Diameter (d) : 8.000 mm _{+0.025 / +0.075}
(Equiv. 0.315 in.)
Nominal Outside Diameter (D) 9.600 mm
(Equiv. 0.378 in.)
Overall Length 9.000 mm _{+0.000 / -0.400}
(Equiv. 0.354 in.)
Flange Dia (D1) 12.000 mm -0.400 / +0.400
Flange Width (S1) 0.8 mm +0.000 / -0.130
Min Housing Bore 9.380 mm
Max Housing Bore 9.600 mm
Min Shaft Size 7.975 mm
Max Shaft Size 8.000 mm
Sheet Metal Thickness 1.000
Material Plastic

Country of Origin: DE
