BF0250-0274-0250-PCB - Datasheet

Iglidur

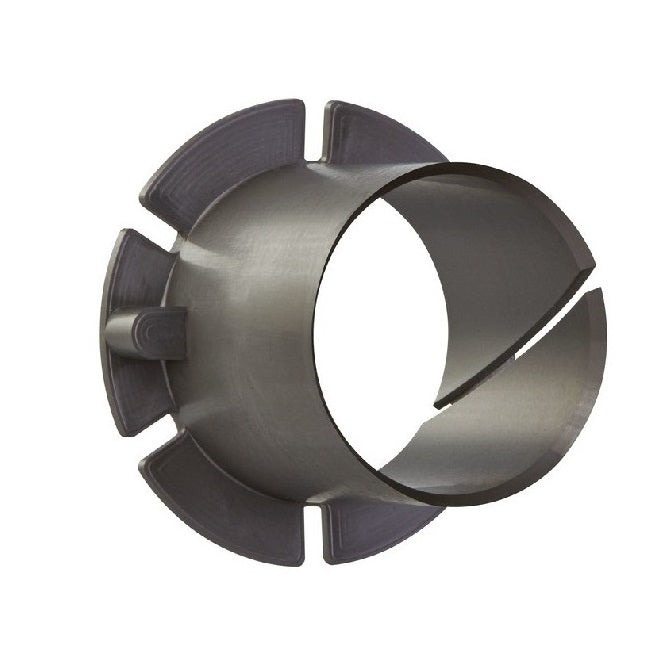

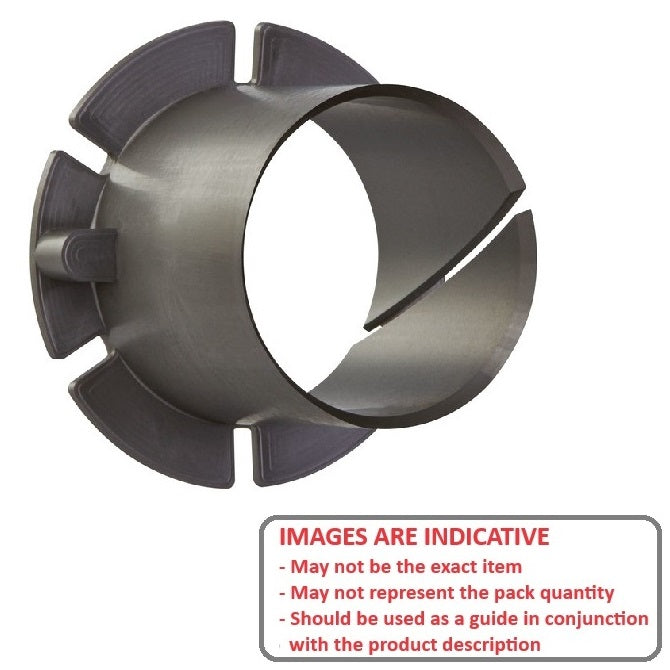

Bevelled Edge Clip Bushes. Used as a light duty split bearing.

Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
Light weight.
M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

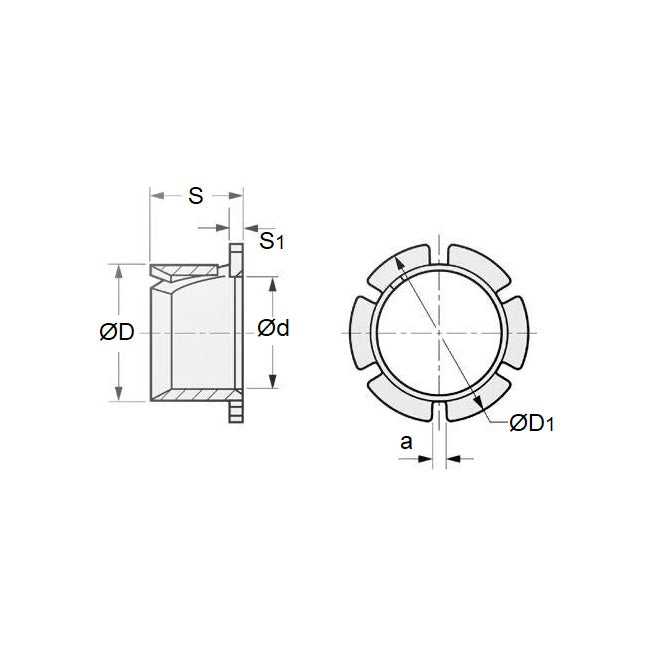

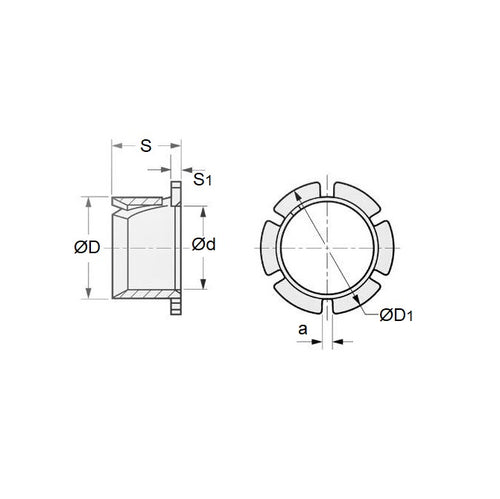

Nominal Inside Diameter (d) : 25.000 mm _{+0.025 / +0.075}
(Equiv. 0.984 in.)
Nominal Outside Diameter (D) 27.400 mm
(Equiv. 1.079 in.)
Overall Length 25.000 mm _{+0.000 / -0.400}
(Equiv. 0.984 in.)
Flange Dia (D1) 37.500 mm -0.400 / +0.400
Flange Width (S1) 1.2 mm +0.000 / -0.130
Min Housing Bore 27.070 mm
Max Housing Bore 27.400 mm
Min Shaft Size 24.962 mm
Max Shaft Size 25.000 mm
Sheet Metal Thickness 1.000
Material Plastic

Country of Origin: DE
