BF0140-0156-0140-PCB - Datasheet

Iglidur

Category Information

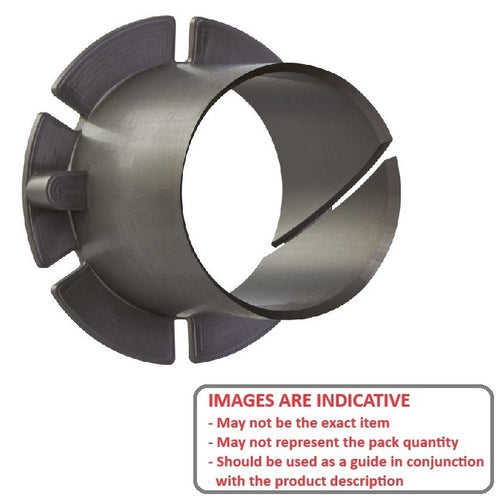

Bushes - Clip - Bevelled Edge

Bevelled Edge Clip Bushes. Used as a light duty split bearing.

  • Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
  • Light weight.
  • M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

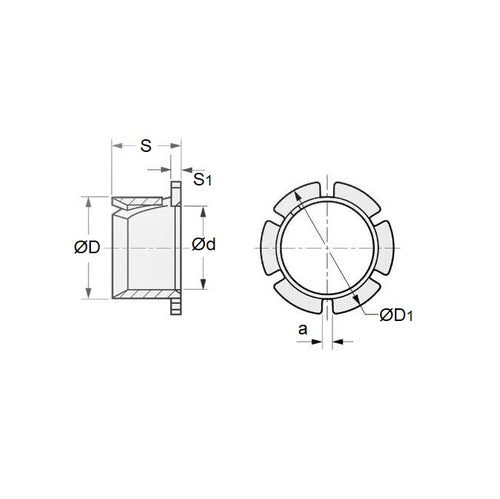

Product Data

  • Nominal Inside Diameter (d) : 14.000 mm +0.025 / +0.075
    (Equiv. 0.551 in.)
  • Nominal Outside Diameter (D) 15.600 mm
    (Equiv. 0.614 in.)
  • Overall Length 14.000 mm +0.000 / -0.400
    (Equiv. 0.551 in.)
  • Flange Dia (D1) 21.000 mm -0.400 / +0.400
  • Flange Width (S1) 0.8 mm +0.000 / -0.130
  • Min Housing Bore 15.330 mm
  • Max Housing Bore 15.600 mm
  • Min Shaft Size 13.975 mm
  • Max Shaft Size 14.000 mm
  • Sheet Metal Thickness 1.000
  • Material Plastic
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • S99GMYM141614
