Miniature Bearings Australia
KF000-082-6L-ST - Datasheet
MBA
Category Information

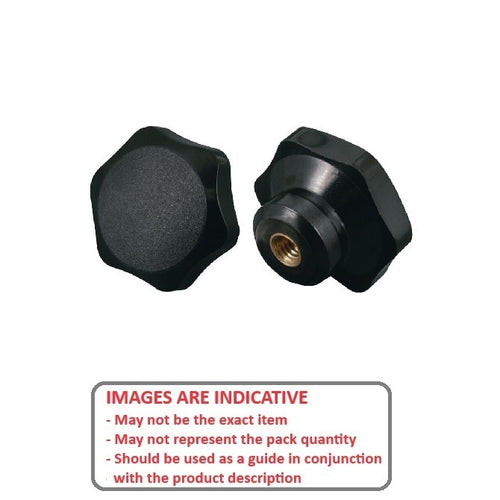

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : Solid

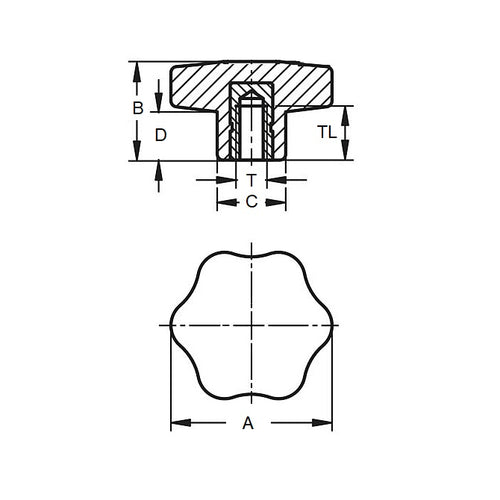

- Head Diameter (A)
82.04
mm
(Equiv. 3.23 in.) - Thread Length
30.0
mm
(Equiv. 1.181 in.) - Colour Black
- Hub Diameter (C) 35.05 mm
- Hub Length (F) 39.88 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KHN-15
- KHN15
