SWR144C-D38W-CSN-TO - Datasheet
MBA
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

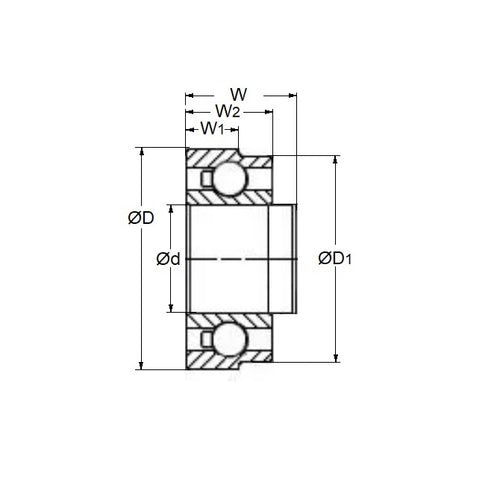

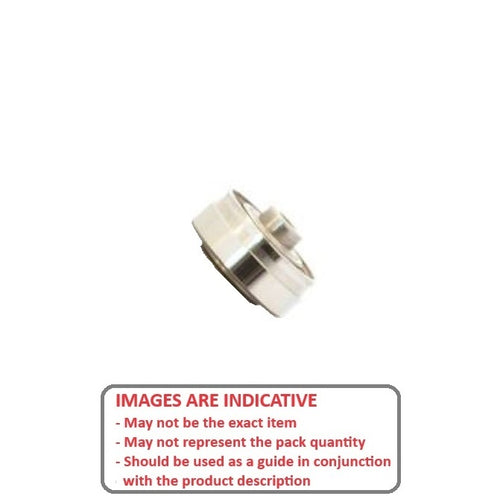

Open, stainless steel bearing, with extended inner ring and very narrow width, for dental applications.
- ID (d)
:
3.175
mm
-0.00 / +0.10
(Equiv. 0.125 in.) - O.D. (D)
6.350
mm
-0.10 / +0.00
(Equiv. 0.25 in.) - Width (B)
1.905
mm
-0.12 / +0.00
(Equiv. 0.075 in.) - Inner Ring Width (Bn) 2.778 mm
- Additional Information Ceramic Hybrid, Torlon Cage
- Lubrication Type Oil
- Lubrication Name Undisclosed
- Basic Part WR144CD38
- Limiting Speed 139322.6
- Cage Type Torlon
- Static Load Rating KGf 10
- Dynamic Load Rating KGf 29
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance Special
- Precision Grade Abec 7
- Closure Type Open
- Max Temperature 140 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- KaVo® - 25LP - Bearing for Headgear
- KaVo® - 25LPA - Bearing for Headgear
- KaVo® - E25L - Bearing for Headgear
- MK-Dent® - LE15L - Bearing for Headgear
- MK-Dent® - LP15L - Bearing for Headgear
Cross References
- Generic Dental 23167
- Generic Dental 24038
- Generic Dental 25029
- BKU24038
- WR144CD38 Basic Size Ref
