Miniature Bearings Australia
SWR156A-ZZS-MC3-AF12 - Datasheet
MBA
Category Information

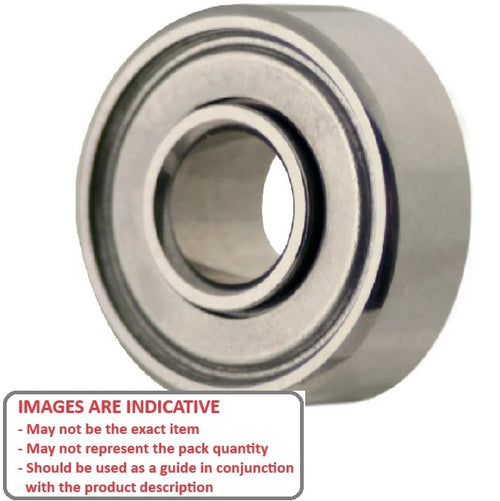

Bearings - Single Row Ball - Unflanged - Precision - Extended InnerExtended Inner Precision Unflanged Single Row Ball Bearings. Single row radial ball bearings with extended inner ring (wide inner ring).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.

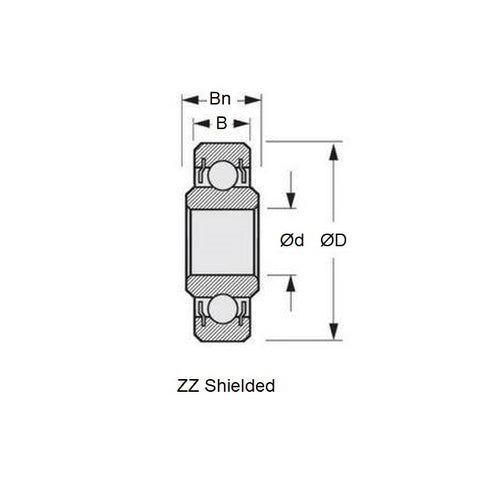

Product Data
- ID (d)
:
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.) - OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.) - Width (B)
3.175
mm
+ 0.000 / - 0.125
(Equiv. 0.125 in.) - Inner Ring Width (Bn) 3.969 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial with Extended Inner
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part WR156A
- Limiting Speed 63000
- Cage Type Crown
- Static Load Rating KGf 15
- Dynamic Load Rating KGf 37
- Radii 0.10 mm
- Inner Shoulder (UI) 5.53mm
- Outer Shoulder (UO) 7.30 mm
- Number of Balls 10
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 57155K16
- MPB S5632CHHE
- GRW SE4763A-2Z
- GRW SE4763A-2Z-P6
- Similar Part SRW156
- NHBB SSR1-5632-ZZEE
- NHBB SSR156PPEE
- ADR WLAX3-16-ZZ
- WR156A
- WLAX316ZZ
- SRW156-ZZ-AF2
- SRW156SS
- SRW156ZZAF2
- SS-R1-5632-ZZEE
- SSR15632ZZEE
- DDR1-5632-ZZEE
- DD-R1-5632-ZZEE
- DDR15632ZZEE
- DMB44
- DMB-44
- SE4763A2Z
- SE4763A2ZP6
- ULUZ6010X
- WR156A Basic Size Ref
