SWR144-D28W-CSN-Z-TO - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

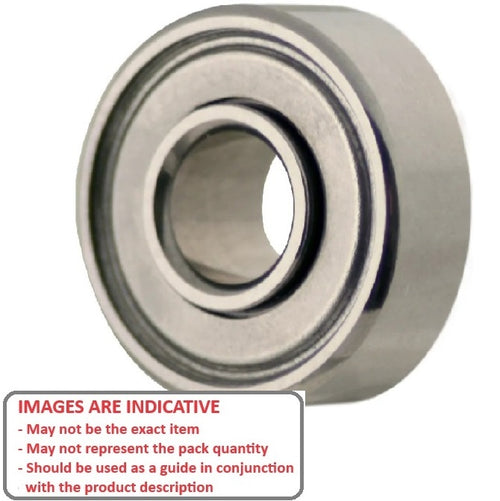

Single shielded dental special angular contact ceramic-hybrid bearing with extended inner ring and high speed Torlon retainer

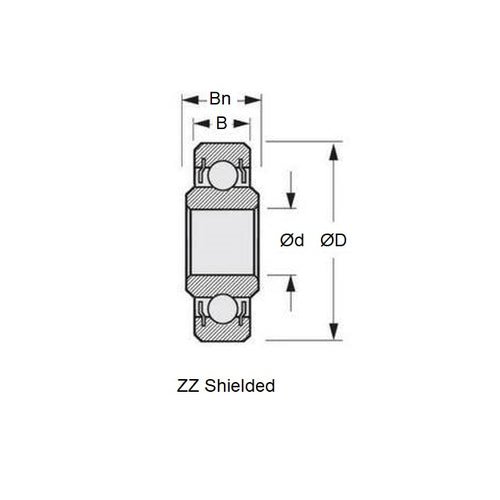

- ID (d)
:
3.175
mm
+ 0.000 / - 0.004
(Equiv. 0.125 in.) - O.D. (D)
6.350
mm
+ 0.000 / - 0.005
(Equiv. 0.25 in.) - Width (B)
2.381
mm
+ 0.000 / - 0.040
(Equiv. 0.094 in.) - Inner Ring Width (Bn) 2.779 Extended Back Only mm
- Precision Grade Abec 7
- Closure Type wZ
- Bearing Type Radial with Extended Inner
- Material Stainless Steel AISI 440C - Ceramic Si3N4 Balls
- Lubrication Type Oil
- Lubrication Name Undisclosed
- Basic Part WR144
- Limiting Speed 166400
- Cage Type Torlon
- Static Load Rating KGf 10
- Dynamic Load Rating KGf 29
- Radii 0.10 mm
- Inner Shoulder (UI) 3.92mm
- Outer Shoulder (UO) 5.38 mm
- Number of Balls 7
- Clearance Special
- Precision Grade Abec 7
- Closure Type Z
- Max Temperature 140 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- KaVo® - 6000 - Bearing for Rotor Cartridge - Alternative Options
- KaVo® - 6500 - Bearing for Rotor Cartridge - Alternative Options
- KaVo® - 7000 - Bearing for Rotor Cartridge - Alternative Options
- KaVo® - E675 - Bearing for Rotor Cartridge Top - Alternative Options
- KaVo® - E677 - Bearing for Rotor Cartridge Top - Alternative Options
- KaVo® - S605 - Bearing for Rotor Cartridge
Cross References
- Generic Dental 27980CT
- SWR144D28AWCSNZTO
- R144 Basic Size Ref
