COL-00900-020-10-S3 - Datasheet
MBA
Category Information

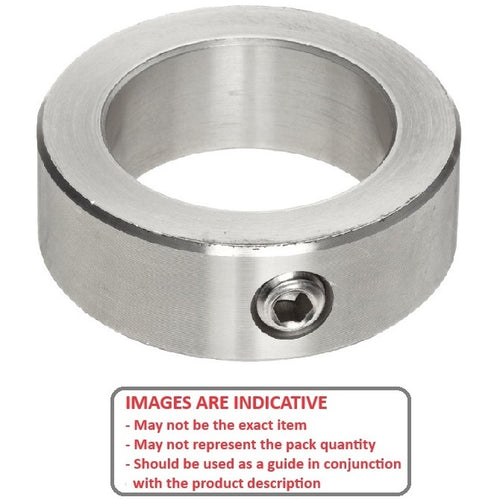

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Shaft Size (d)
:
9.000
mm
(Equiv. 0.354 in.) - Outside Diameter (D)
20.00
mm
(Equiv. 0.787 in.) - Overall Width (S)
10.0
mm
(Equiv. 0.394 in.) - Collar Style Plain Collar
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- A7X2M120090
