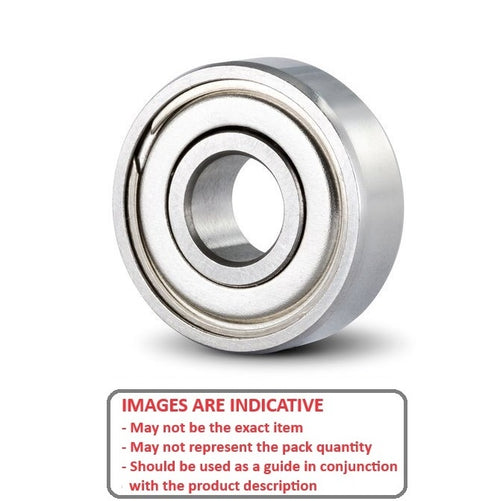

S689-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Non ISO Width
- ID (d)
:
9.000
mm
(Equiv. 0.354 in.) - OD (D)
17.000
mm
(Equiv. 0.669 in.) - Width (B)
4.000
mm
(Equiv. 0.157 in.) - Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 689
- Limiting Speed 34200
- Cage Type Standard
- Static Load Rating KGf 64.6
- Dynamic Load Rating KGf 128.2
- Radii 0.20 mm
- Inner Shoulder (UI) 11.50mm
- Outer Shoulder (UO) 14.50 mm
- Number of Balls 11
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Fishing Reel Parts
- Daiwa - DA4000M - Bearing 9-17-4mm
- Daiwa - GS3 - Bearing 9-17-4mm
- Shimano - Baitrunner 4500 / 6500A - End Plate Bearing 9-17-4mm Both Sides
- Shimano - Baitrunner 4500 / 6500A - Rotor Bearing 9-17-4mm
- Shimano - TSS4 - End Plate Bearing 9-17-4mm Left and Right
- Silstar - AT70B - Handle Shaft Bearing 9-17-4mm
Cross References
- SHIMANO 1102
- Similar Part 689HW4
- Stainless 689ZZSECO
- Stainless 689-ZZS-ECO
- SHIMANO BR0137-Bearing
- SHIMANO RD1102
- SHIMANO RD8629
- Shielded S689 / 4
- Shielded SS689 / 4
- BR0137Bearing
- 689HZZSW4
- 689H-ZZSW4
- 83742BST
- 689 Basic Size Ref
