Category Information

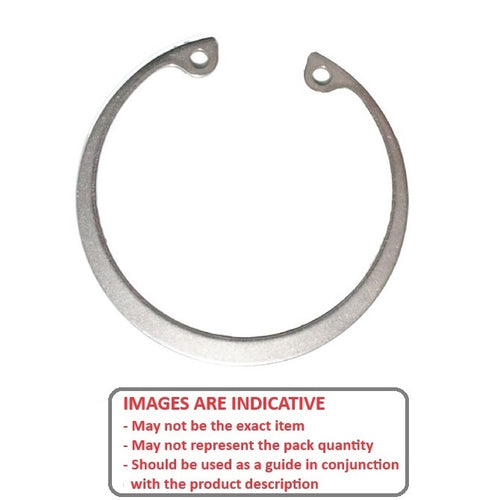

Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
PH15-7 Mo Stainless Steel.
Tolerances on request.

Product Data

Housing Bore (B) : 98.43 mm
(Equiv. 3.875 in.)
Clip Thickness (T) 2.77 mm _{+/- 0.152}
(Equiv. 0.109 in.)
Groove Dia. (Dg) 104.32 mm _{+ 0.00 / - 0.08}
(Equiv. 4.107 in.)
Approx. Loose Circlip OD (Dr) 108.99 mm + 1.65 / - 1.65
Groove Width (W) 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C) 80.52 mm
Clearance in Groove (C1) 86.36 mm
Min. Lug Diameter (h) 3.12 mm
Min. Extension (n) 8.84
Material Stainless Steel Grade PH15-7 Mo

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

91580A313
NoCor HO-387-SS
HO387SS
N13000387BDS
N1300-0387BDS
