CCI-09500-S15 - Datasheet
MBA
Category Information

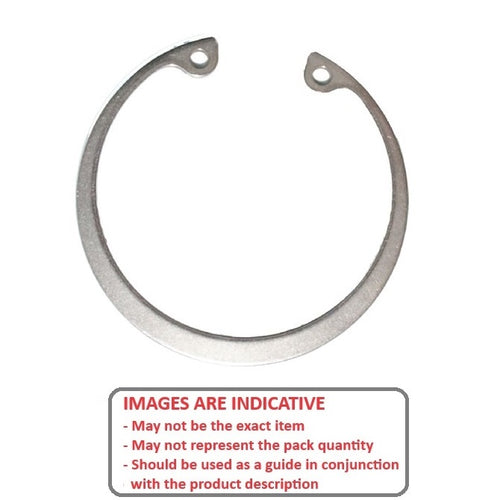

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
95.00
mm
(Equiv. 3.74 in.) - Clip Thickness (T)
3.00
mm
+ 0.35 / - 0.00
(Equiv. 0.118 in.) - Groove Dia. (Dg)
98.50
mm
+ 0.00 / - 0.08
(Equiv. 3.878 in.) - Approx. Loose Circlip OD (Dr) 100.50 mm + 1.30 / - 0.54
- Groove Width (W) 3.15 mm + 0.13 / - 0.00
- Clearance in Bore (C) 76.50 mm
- Clearance in Groove (C1) 80.90 mm
- Min. Lug Diameter (h) 3.50 mm
- Min. Extension (n) 5.30
- Standard DIN472
- Material Stainless Steel Grade PH15-7 Mo
