KMS-2164 - Datasheet
KMS
Category Information

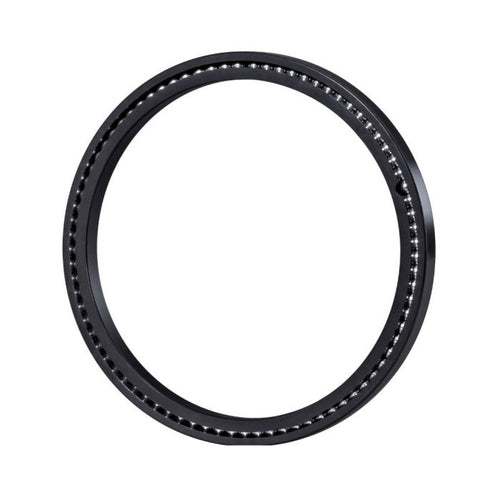

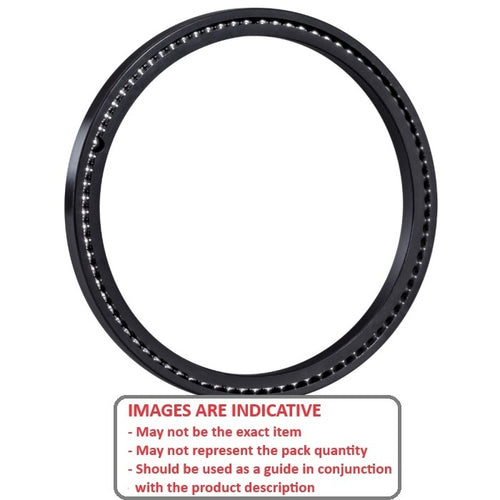

Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls316 Stainless Balls Single Row Acetal Plastic Bearings. Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.
- Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
- These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
- Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
- Races made from Acetal - Balls made from 316 Stainless Steel - Cages from Acetal or Nylon.
- Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
- Temperature Range - Minus 30 oC to 100 oC Continuous.
Product Data
- ID (d)
:
95.000
mm
(Equiv. 3.74 in.) - OD (D)
110.00
mm
(Equiv. 4.331 in.) - Width (B)
8.000
mm
(Equiv. 0.315 in.) - Max RPM in Air 750
- Notes Unlubricated
- Type Special Thin Race
- Dynamic Load Rating 60 Kg
- Static Load Rating 40 Kg
- Material Acetal with Stainless 316 Balls
- Lubrication Type None Required
- Lubrication Name Water Or Dry
- Basic Part KMS2164
- Limiting Speed 0
- Cage Type Plastic Ribbon
- Static Load Rating KGf 0
- Dynamic Load Rating KGf 0
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance Special (8 to 35)
- Precision Grade Special - Refer Plastic Bearing Data
- Closure Type Open
- Max Temperature 100 Deg. C
