CCE-09000H-C - Datasheet
MBA
Category Information

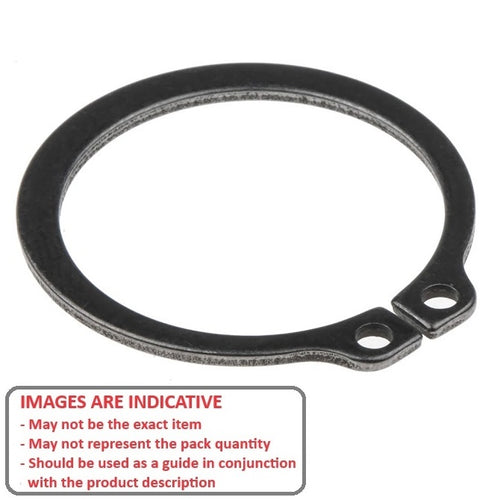

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 90.00 mm
- Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.) - Groove Dia. (Dg)
86.50
mm
+ 0.00 / - 0.35
(Equiv. 3.406 in.) - Approx. Loose Circlip ID (A) 84.50 mm
- Groove Width (W) 4.15 mm
- Clearance on Shaft (C1) 111.40 mm
- Clearance in Groove (C1) 106.90 mm
- Min. Lug Diameter (h) 3.50 mm
- Min. Extension (n) 5.30
- Standard Heavy Duty Variation DIN471 table 2
- Material Carbon Steel
