CSC-095-029-06-M - Datasheet
MBA
Category Information

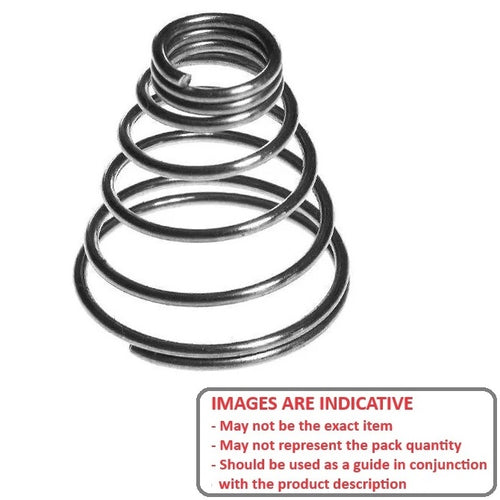

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data

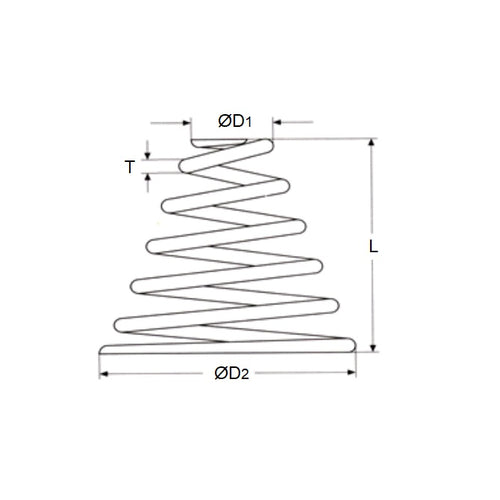

- Large End OD
:
9.50
mm
(Equiv. 0.374 in.) - Free Length
28.6
mm
(Equiv. 1.126 in.) - Small End OD
6.4
mm
(Equiv. 0.252 in.) - Inside Diameter Clearance 5.2 mm
- Wire Thickness 0.56 mm
- Rate 0.0 kg/mm
- Inside Diameter 5.2 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX-11
- CX11
