LYP-Q2-095-076-CZ - Datasheet
MBA
Category Information

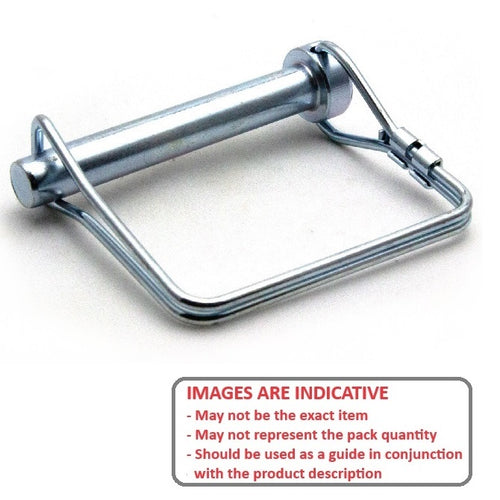

Pins - Wire Lock Lynch - Double Wire - Square - Carbon SteelCarbon Steel Square Double Wire Wire Lock Lynch Pins. Also known as 3 point hitch pins, Quick Pins, Click Pins and Snapper Pins
- Spring-loaded wire loop that snaps over a pin inserted through a shaft to prevent objects from sliding off.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
Product Data
- Pin Diameter (A)
:
9.53
mm
- 0.051 / - 0.178
(Equiv. 0.375 in.) - Grip Length (C)
76.20
mm
+ 0.00 / - 6.35
(Equiv. 3 in.) - Wire Thickness (T)
2.3
mm
(Equiv. 0.091 in.) - Clearance To Wire (E) 38.1 mm
- Pin Length (B) 82.6 mm
- Weight Per Piece 74 g
- Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SNAP-375-3000S
- SNAP3753000S
