CLP-095-0417-CZ - Datasheet
MBA
Category Information

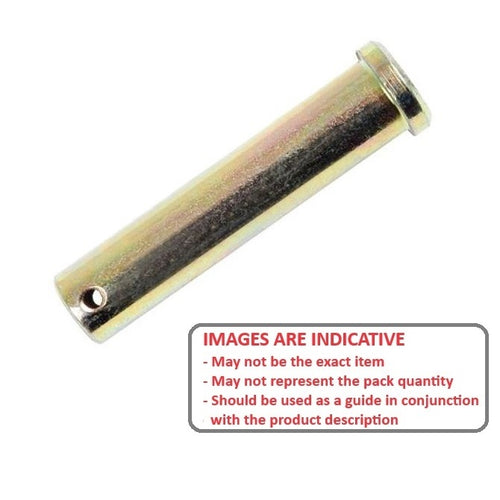

Pins - Clevis - Pin Locking - Zinc PlatedZinc Plated Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
- Sinc plated low carbon steel
Product Data

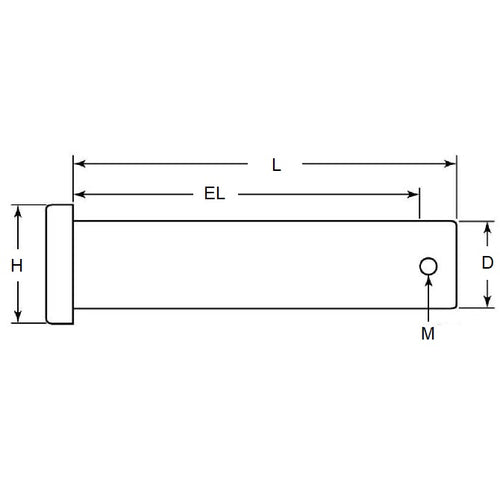

- Nominal Pin Diameter (D)
:
9.53
mm
- 0.05 / - 0.18
(Equiv. 0.375 in.) - Grip Length (EL)
41.67
mm
+ 0.51 / - 0.00
(Equiv. 1.641 in.) - Nom. Length (L)
47.63
mm
+ 0.51 / - 0.00
(Equiv. 1.875 in.) - Ret. Pin Dia. (M) 2.4 mm
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97245A344
- NoCor CLP-0375-1875
- NoCor CLPZ-0375-1875
- NoCor CLPZ-0375-1875/B
- NoCor CLPZ-0375-1875-B
- CLPZ03751875B
- CLPZ03751875/B
- CLP03751875
- CLP0950417Z
