SBTN-0953-SP-S3 - Datasheet
MBA
Category Information

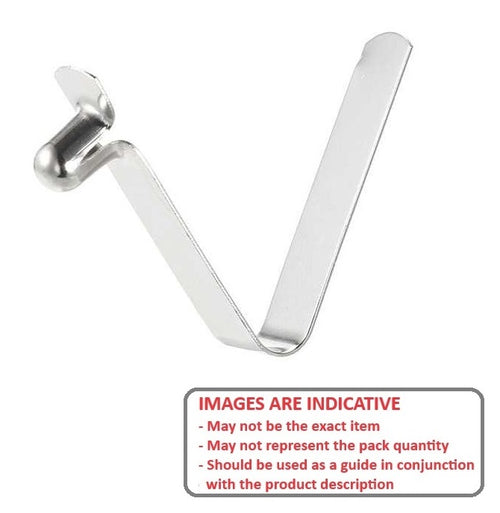

Snap Buttons - Single End - Spring LegSpring Leg Single End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
- Eliminates the need for rivets and screws.
- Simply snap into place in square or round tubing.
- Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating
Product Data

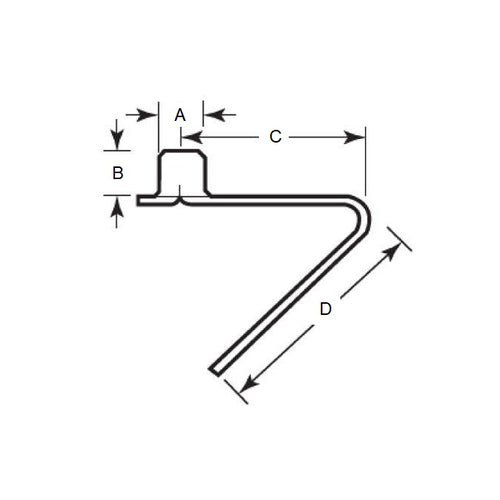

- Button Diameter (A)
:
9.53
mm
(Equiv. 0.375 in.) - Button Height (B)
14.99
mm
(Equiv. 0.59 in.) - Material Thickness
0.762
mm
(Equiv. 0.03 in.) - Clip Width 9.53 mm
- Use with Round Tubing 24.9 to 57.2
- Use with Square Tubing 24.9 to 57.2
- Special Material 300 Grade Stainless Steel
- Material Stainless Steel
