CLP-095-1016-CZ-H - Datasheet
MBA
Category Information

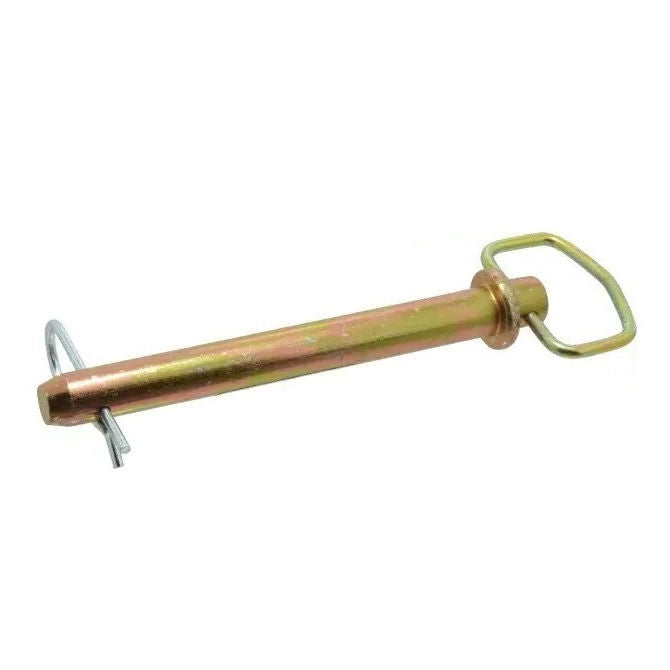

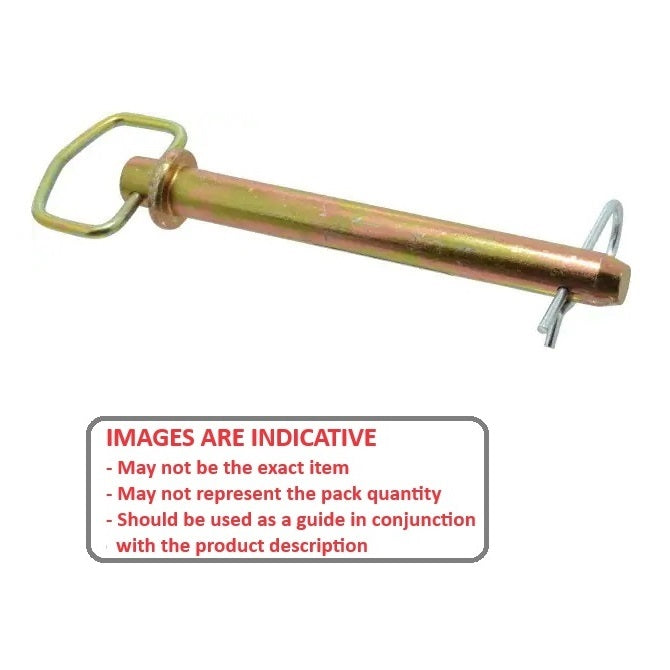

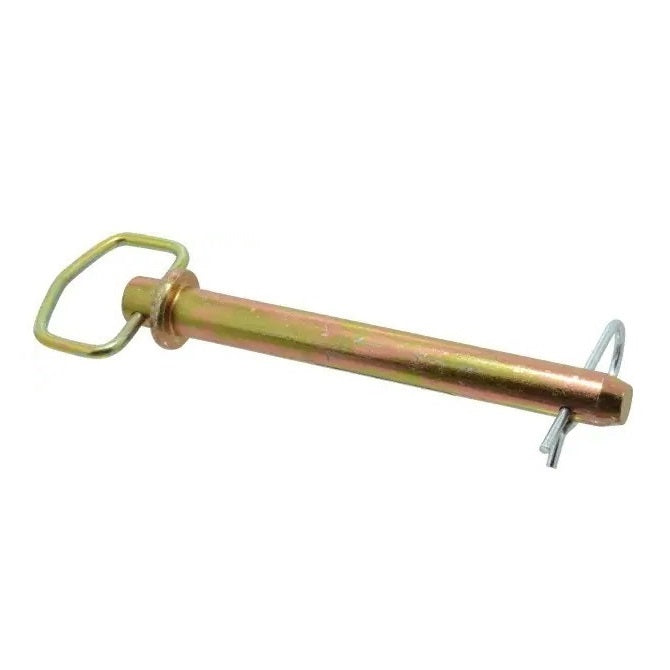

Pins - Clevis - Handle - Straight - Pin Locking - PlainPlain Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
 - A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
 - Includes zinc plated R-Clip

Product Data

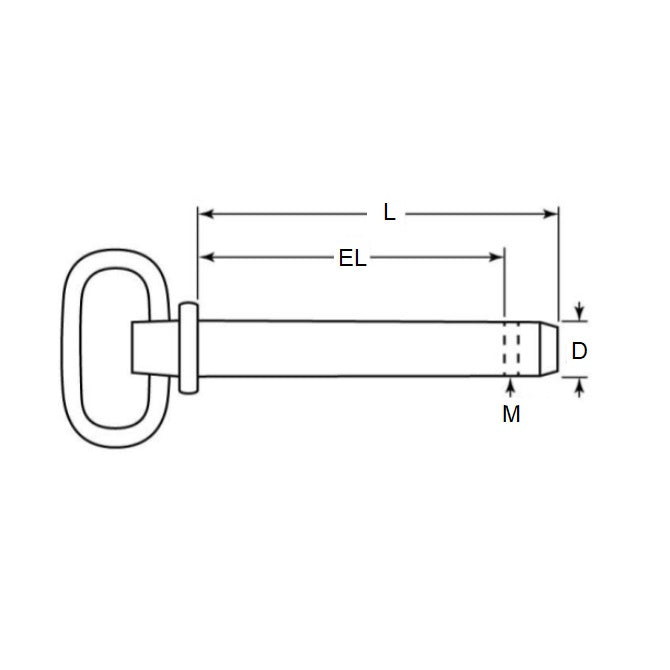

- Nominal Pin Diameter (D)
:
9.53
mm
- 0.05 / - 0.18
(Equiv. 0.375 in.) - Grip Length (EL)
101.60
mm
+ 0.51 / - 0.00
(Equiv. 4 in.) - Pin Finish Zinc Plated
 - Handle Finish Zinc Plated
 - Handle Material Heat treated Steel
 - Material Carbon Steel Heat Treated

Product Compliance and Data
Additional Resources
Cross References
- CLP0951016ZH
 - CLP-550
 - CLP550
