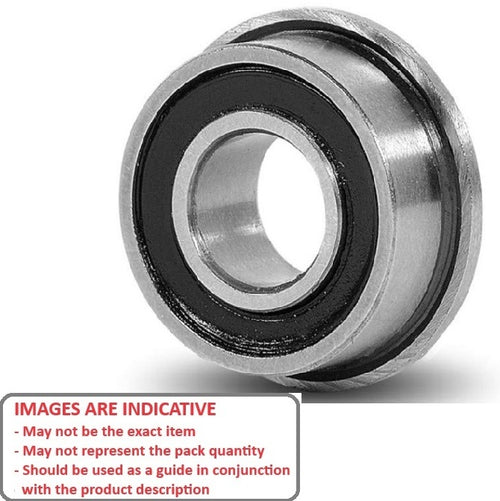

SFR6A-2RS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

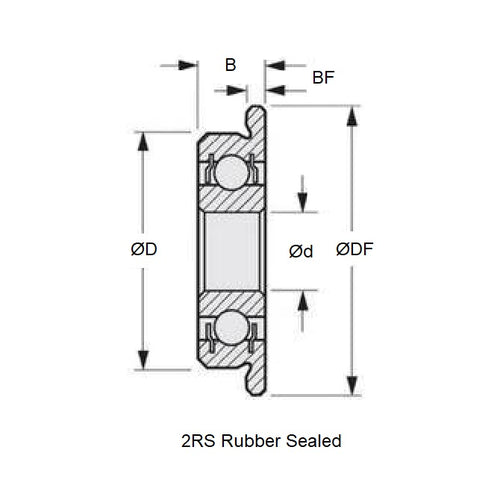

Product Data
- ID (d)
:
9.525
mm
+ 0.000 / - 0.0075
(Equiv. 0.375 in.) - OD (D)
22.225
mm
+ 0.000 / - 0.010
(Equiv. 0.875 in.) - Width (B)
7.142
mm
+ 0.000 / - 0.125
(Equiv. 0.281 in.) - Flange Diameter (DF) 24.613 mm
- Flange Width (BF) 1.575 mm
- Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FR6A
- Limiting Speed 21760
- Cage Type Ribbon
- Static Load Rating KGf 145
- Dynamic Load Rating KGf 340
- Radii 0.40 mm
- Inner Shoulder (UI) 11.90mm
- Outer Shoulder (UO) 19.90 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- FAFNIR AFS3KPP
- Stainless FR6A2RSMC3
- Stainless FR6A-2RS-MC3
- Stainless FR6ARSMC3
- Stainless FR6A-RS-MC3
- Sealed Width A SFR6 / 7
- ISO SFR62RS
- ISO SFR6-2RS
- Nachi SFR6-2RS
- Sealed SFR6A / 7
- ISO SFR6RS
- ISO SFR6-RS
- Nachi SFR6-RS
- Sealed Width A SSFR6 / 7
- ISO SSFR62RS
- ISO SSFR6-2RS
- Nachi SSFR6-2RS
- Sealed SSFR6A / 7
- ISO SSFR6RS
- ISO SSFR6-RS
- Nachi SSFR6-RS
- SFR6A-RSMC3
- SFR6ARSMC3
- SFR6A-2RSMC3
- SFR6A2RSMC3
- SSFR6ARSMC3
- SSFR6A-RSMC3
- SSFR6A-2RSMC3
- SSFR6A2RSMC3
- FR6A Basic Size Ref
