R6A-CSN-Z-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

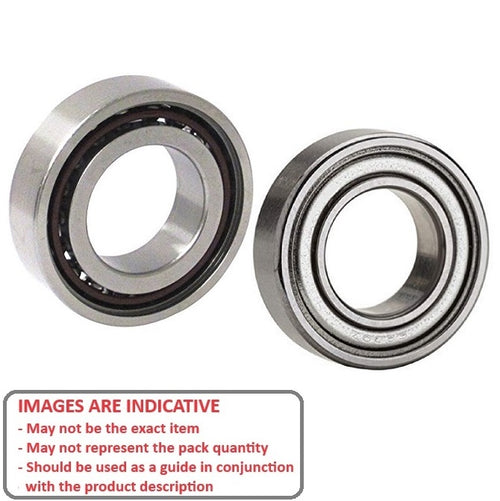

Single shielded economy ceramic-hybrid bearing with a high speed polyamide retainer

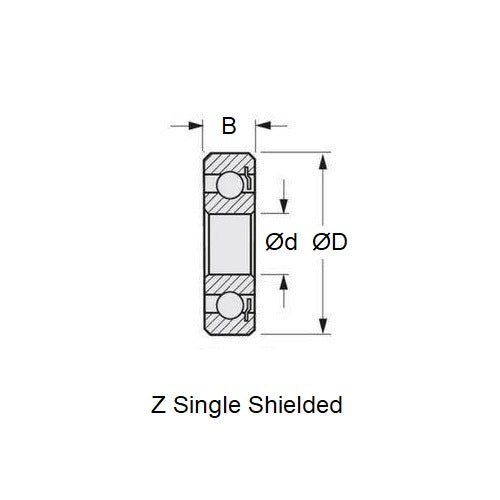

- ID (d) : 9.525 mm
- O.D. (D) 22.225 mm
- Width (B) 7.142 mm
- Precision Grade Abec 1
- Closure Type Z
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R6A
- Limiting Speed 48640
- Cage Type Polyamide
- Static Load Rating KGf 110.2
- Dynamic Load Rating KGf 258.4
- Radii 0.40 mm
- Inner Shoulder (UI) 11.90mm
- Outer Shoulder (UO) 19.90 mm
- Number of Balls 7
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type Z
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- ASP® - 52 New - Front Bearing
- ASP® - S46A - Front Bearing
- Bluebird® - 2C - 28 - Bearing
- CEN - NX-76 - 28 - Bearing
- Chapman® - DC - 46 - Bearing
- Enya® - 2C - 0.28 - Bearing
- Enya® - 2C 733 - 46 - Bearing
- Enya® - 2C SS - 60 - Bearing
- Enya® - 4C - 46 - Bearing
- Enya® - 4C - 60 - Bearing
- Enya® - 4C - 80 - Bearing
- Enya® - 4C - Old - 40 - Bearing
- Enya® - 50CX - 46 - Bearing
- Enya® - BB 6001 - 29 - Bearing
- Enya® - BB 6001 - 35 - Bearing
- Enya® - CX - 40 - Bearing
- Enya® - CX - 45 - Bearing
- Enya® - III - 120 - Bearing
- Enya® - III - 35 - Bearing
- Enya® - SS - 120 - Bearing
- Enya® - SS - 40 - Bearing
- Enya® - SS40BB - 50 - Bearing
- Enya® - TVBB - 40 - Bearing
- Enya® - X 2Cand3 - 19 - Bearing
- Enya® - XF 2C - 19 - Bearing
- Enya® - XF-4 - 60 - Bearing
- Enya® - XF-4H - 60 - Bearing
- Horizon® - Evolution - 25 - Bearing
- Irvine® - 40 All Models - Bearing
- Irvine® - 46 ABC - 12 - Bearing
- Irvine® - 46 All Models - Bearing
- Irvine® - MK2 - 61 - Bearing
- K.B - 8702 - 3.5 21CC - Bearing
- K.B - Fire - 7.5 - Bearing
- K.B - Outboard Late Model Marine - 40 - Bearing
- K.B - Outboard Marine - 3.5 - Bearing
- K.B - Outboard Marine Late Model - 90 - Bearing
- K.B - Pro - 67 - Bearing
- K.B - SS Marine - 7.5 .45CC - Bearing
- Magnum Power® - 28 All Models - Bearing
- Magnum Power® - 4C - 120 - Bearing
- Magnum Power® - Pro - 36 - Bearing
- Magnum Power® - Pro - 40 - Bearing
- Magnum Power® - Pro - 45 - Bearing
- Magnum Power® - Pro SE - 61 - Bearing
- Magnum Power® - XLS - 36 - Bearing
- Magnum Power® - XLS - 40 - Bearing
- Magnum Power® - XLS 91A - 46 - Bearing
- Magnum Power® - XLS52A - 91 - Bearing
- MDS - 58 All Models - Bearing
- Mutunuc® - Taiwan - 12 - Bearing
- OS Engines® - ABC-P RC - 60 - Replacement Bearing
- OS Engines® - AX - 46 - Replacement Bearing
- OS Engines® - CZ-Z Recoil - 12 - Replacement Bearing
- OS Engines® - F4 4-C - 320 - Replacement Bearing
- OS Engines® - F4 4CYL - 32 - Replacement Bearing
- OS Engines® - FP - 70 - Replacement Bearing
- OS Engines® - FPS - 70 - Replacement Bearing
- OS Engines® - FS - 40 - Replacement Bearing
- OS Engines® - FS 70 II Surpass - 40 - Replacement Bearing
- OS Engines® - FS 70 Surpass RC 4C - 20 - Replacement Bearing
- OS Engines® - FS FI Surpass II - 70 - Replacement Bearing
- OS Engines® - FS II Surpass With Pump 91 - Replacement Bearing
- OS Engines® - FS RC 4C - 40 - Replacement Bearing
- OS Engines® - FS RC 4C Non Surpass - 80 - Replacement Bearing
- OS Engines® - FS Surpass II 4C - 12 - Replacement Bearing
- OS Engines® - FS Surpass RC 4C 91 - 48 - Replacement Bearing
- OS Engines® - FS70 II - 4 Stroke - Front Bearing
- OS Engines® - FS70S - 4 Stroke - Front Bearing
- OS Engines® - FS91S - 4 Stroke - Front Bearing
- OS Engines® - FSR - 25 - Replacement Bearing
- OS Engines® - FSR - 40 - Replacement Bearing
- OS Engines® - FSR - 45 - Replacement Bearing
- OS Engines® - FSR ABC - 45 - Replacement Bearing
- OS Engines® - FSR ABC - 61 - Replacement Bearing
- OS Engines® - FSR Gold Head - 45 - Replacement Bearing
- OS Engines® - FSR RC Special - 90 - Replacement Bearing
- OS Engines® - FSR RC W-Muffler - 40 - Replacement Bearing
- OS Engines® - FSR RC W-Muffler - 91 - Replacement Bearing
- OS Engines® - FSR Ring ED - 108 - Replacement Bearing
- OS Engines® - FSRH - 40 - Replacement Bearing
- OS Engines® - FSR-H RC - 61 - Replacement Bearing
- OS Engines® - FSR-S W-Muffler - 90 - Replacement Bearing
- OS Engines® - FT 12 Twin RC 4C - 45 - Replacement Bearing
- OS Engines® - FT Twin 120 II - 45 - Replacement Bearing
- OS Engines® - FT Twin RC 4C - 12 - Replacement Bearing
- OS Engines® - FT Twin RC 4C - 120 - Replacement Bearing
- OS Engines® - FX - 25 - Replacement Bearing
- OS Engines® - FX - 40 - Replacement Bearing
- OS Engines® - FX - 61 - Replacement Bearing
- OS Engines® - FX-H Ring - 91 - Replacement Bearing
- OS Engines® - FXI - 46 - Replacement Bearing
- OS Engines® - H - 46 - Replacement Bearing
- OS Engines® - HWC - 60 - Replacement Bearing
- OS Engines® - Old FF 4 CYL - 61 - Replacement Bearing
- OS Engines® - Old FT Twin 4C - 240 - Replacement Bearing
- OS Engines® - Old FT Twin 4C - 25 - Replacement Bearing
- OS Engines® - RF ABC LS - 40 - Replacement Bearing
- OS Engines® - RF ABC RC - 61 - Replacement Bearing
- OS Engines® - RF-H Pump - 21 - Replacement Bearing
- OS Engines® - RF-H RC With 7H - 21 - Replacement Bearing
- OS Engines® - RF-HS - 61 - Replacement Bearing
- OS Engines® - RF-P - 61 - Replacement Bearing
- OS Engines® - RF-P Hanno Special - 61 - Replacement Bearing
- OS Engines® - RF-P Ring Hanno Special - 61 - Replacement Bearing
- OS Engines® - RX-H - 140 - Replacement Bearing
- OS Engines® - RX-HGL - 61 - Replacement Bearing
- OS Engines® - SF - 25 - Replacement Bearing
- OS Engines® - SF - 40 - Replacement Bearing
- OS Engines® - SF - 46 - Replacement Bearing
- OS Engines® - SF ABC - 61 - Replacement Bearing
- OS Engines® - SF ABC RC - 61 - Replacement Bearing
- OS Engines® - SF ABC RC W-Muffler - 40 - Replacement Bearing
- OS Engines® - SF RC W-Muffler - 40 - Replacement Bearing
- OS Engines® - SF RC W-Muffler - 61 - Replacement Bearing
- OS Engines® - SF Ring - 40 - Replacement Bearing
- OS Engines® - SF Ring - 46 - Replacement Bearing
- OS Engines® - SF-H ABC RC LS - 61 - Replacement Bearing
- OS Engines® - SF-H RC - 61 - Replacement Bearing
- OS Engines® - SF-H RC LS - 46 - Replacement Bearing
- OS Engines® - SF-HP RC - 61 - Replacement Bearing
- OS Engines® - SF-HS - 61 - Replacement Bearing
- OS Engines® - SFN-H RC With 7H - 46 - Replacement Bearing
- OS Engines® - SF-P - 46 - Replacement Bearing
- OS Engines® - SF-P - 61 - Replacement Bearing
- OS Engines® - SF-P RC/Pump - 61 - Replacement Bearing
- OS Engines® - SF-P Ring - 61 - Replacement Bearing
- OS Engines® - SF-S ABC W-Muffler - 40 - Replacement Bearing
- OS Engines® - SF-S ABC W-Muffler - 46 - Replacement Bearing
- OS Engines® - SR 2C Old - 61 - Replacement Bearing
- OS Engines® - SX - 32 - Replacement Bearing
- OS Engines® - SX-H - 32 - Replacement Bearing
- OS Engines® - SX-H - 50 - Replacement Bearing
- OS Engines® - SX-H Ring - 61 - Replacement Bearing
- OS Engines® - SX-H Ring C Spec - 91 - Replacement Bearing
- OS Engines® - SX-H Ring C Spec With Pump - 91 - Replacement Bearing
- OS Engines® - SX-H Ring Hyper - 91 - Replacement Bearing
- OS Engines® - SX-HGL WC - 50 - Replacement Bearing
- OS Engines® - SZ-H - 37 - Replacement Bearing
- OS Engines® - SZ-H - 70 - Replacement Bearing
- OS Engines® - VF - 18 - Replacement Bearing
- OS Engines® - VF ABC RC - 25 - Replacement Bearing
- OS Engines® - VF ABC RC - 61 - Replacement Bearing
- OS Engines® - VF-H ABC - 25 - Replacement Bearing
- OS Engines® - VF-H RC With 7H - 25 - Replacement Bearing
- OS Engines® - VF-P - 61 - Replacement Bearing
- OS Engines® - VR - 30 - Replacement Bearing
- OS Engines® - VR ABC RC - 48 - Replacement Bearing
- OS Engines® - VR-DF - 46 - Replacement Bearing
- OS Engines® - VR-DF Heat Sink Head - 46 - Replacement Bearing
- OS Engines® - VR-DF Small Head - 77 - Replacement Bearing
- OS Engines® - VR-M - 40 - Replacement Bearing
- OS Engines® - VR-M Marine - 40 - Replacement Bearing
- OS Engines® - VR-M Marine - 77 - Replacement Bearing
- OS Engines® - WC - 21 - Replacement Bearing
- Power Racing® - 46 - 26 - Bearing
- RJL - 3.5 All Models - Bearing
- Royal® - 28 All Models - Bearing
- Royal® - 40 All Models - Bearing
- Royal® - Signature - 45 - Bearing
- Saito® - 130 - 120 - Bearing
- Saito® - 4C New - 56 - Bearing
- Saito® - 56 - Bearing
- Saito® - 72 All Models - Bearing
- Saito® - FA 65 - Bearing
- Saito® - FA 80 - Bearing
- Saito® - FA 90 - Bearing
- Super Tigre® - X - 60 - Bearing
- Thunder Tiger® - EK4 - 15 - Bearing
- Thunder Tiger® - H - 12 - Bearing
- Thunder Tiger® - Pro - 36 - Bearing
- Thunder Tiger® - Pro - 46 - Bearing
- Thunder Tiger® - Pro - 61 - Bearing
- Thunder Tiger® - Pro H - 39 - Bearing
- Thunder Tiger® - Pro H - 46 - Bearing
- Thunder Tiger® - Pro H - 90 - Bearing
- Thunder Tiger® - Pro H BB - 50 - Bearing
- Veco® - 19 All Models - Bearing
- Webra® - 4-C ROTARY - 61 - Bearing
- YS - 140DZ - 24.7 - Bearing
- YS - 160DZ - 24.7 - Bearing
- YS - 2-C - 24.7 - Bearing
- YS - 45 All Models - Bearing
- YS - 4-C - 160 - Bearing
- YS - 61 All Models - Bearing
- YS - 80 - 91 - Bearing
- YS - 80 ST - 80 - Bearing
- YS - Air Chamber - 61 - Bearing
- YS - FZ - 60 - Bearing
- YS - FZ 10 - 120 - Bearing
- YS - L - 53 - Bearing
- YS - New - 53 - Bearing
- YS - Old - 140 - Bearing
- YS - PART S - 120 - Bearing
- YS - ST H - 120 - Bearing
- YS - ST2 61 Heli - 61 - Bearing
- YS - ST4 91 Heli - 61 - Bearing
- YS - SZ - 61 - Bearing
Cross References
- BOCA® R6ZC-TH9-C3
- R6ACSNT9HZECO
- R6ZCTH9C3
- R6ACSNT9HZC823ECO
- R6A Basic Size Ref
