COL-00953-019-10-CBO - Datasheet
MBA
Category Information

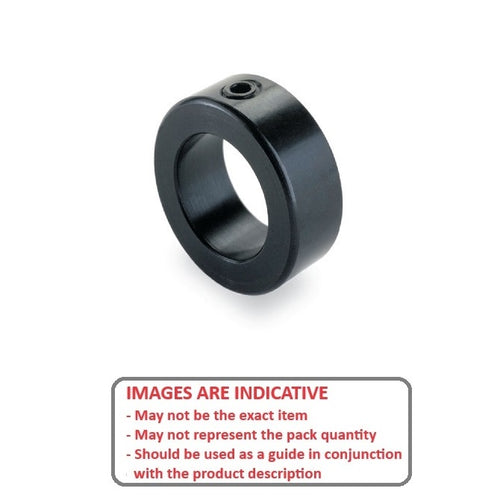

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data

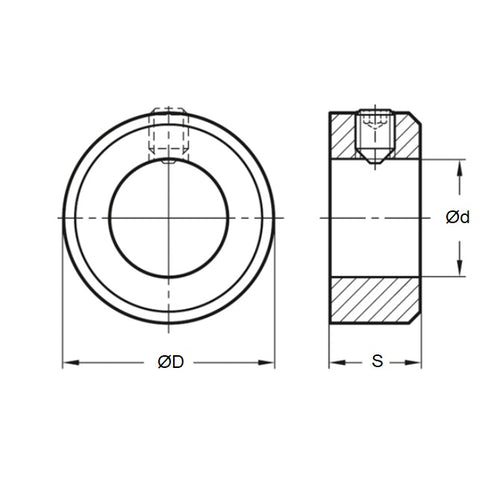

- Suitable Shaft Size (d)
:
9.525
mm
(Equiv. 0.375 in.) - Outside Diameter (D)
19.05
mm
(Equiv. 0.75 in.) - Overall Width (S)
9.5
mm
(Equiv. 0.374 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SC-0375-BO
- SC0375BO
