BFM-375-AF - Datasheet
MBA
Category Information

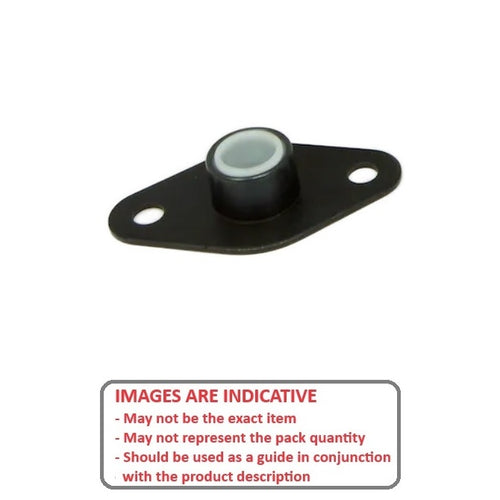

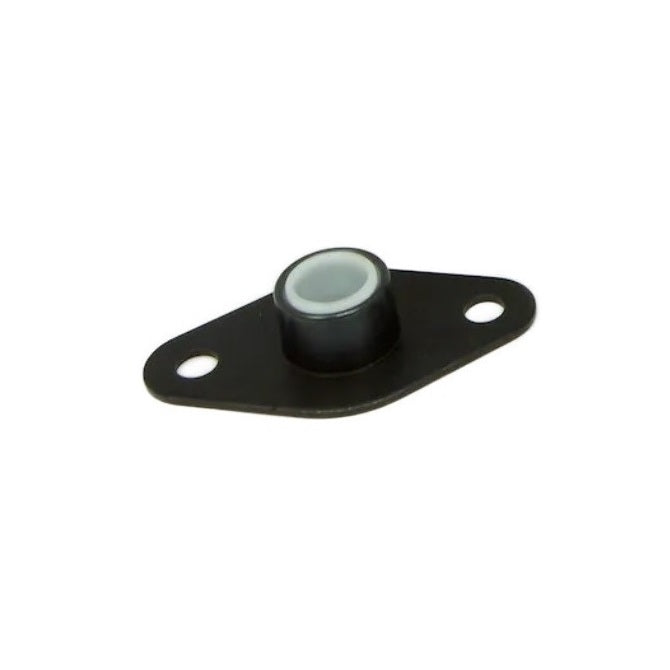

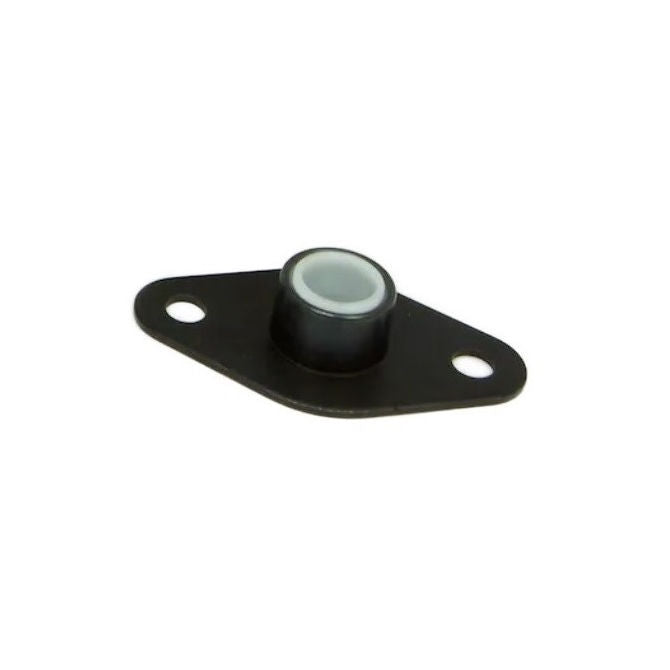

Housing and Bearing Assembly - Flanged 2 Bolt - Self Aligning - PlasticPlastic Self Aligning Flanged 2 Bolt Housing Assembly. This is the main category in this series
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
9.525
mm

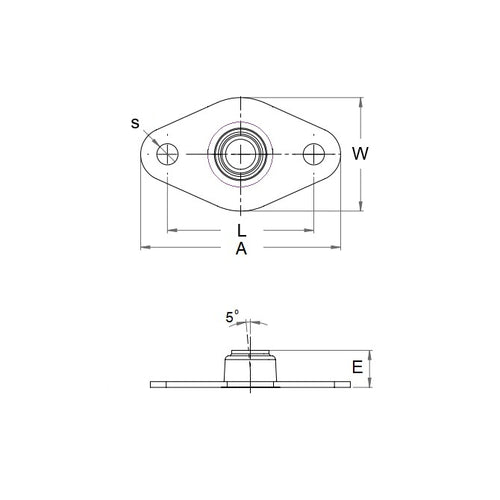

(Equiv. 0.375 in.) - Width (W)
53.34
mm
(Equiv. 2.1 in.) - Overall Length (A)
16.67
mm
(Equiv. 0.656 in.) - Overall Height (E) 30.23 mm
- Min to Max Shaft Dia. 9.550 to 9.601 mm
- Max. Radial Dynamic Load 845 N
- Bolt Hole Centres (L) 38.86 mm
- Max Speed 1010
- Material Delrin ™ AF
