BBF-095-ZD - Datasheet
MBA
Category Information

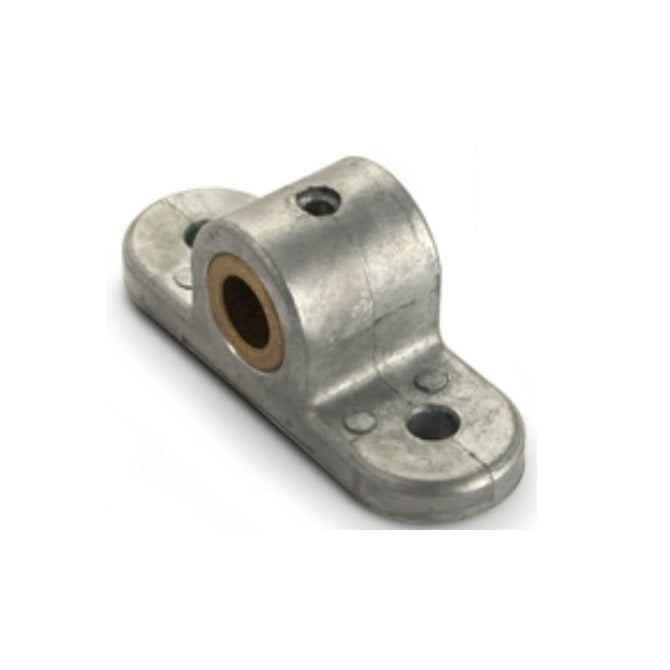

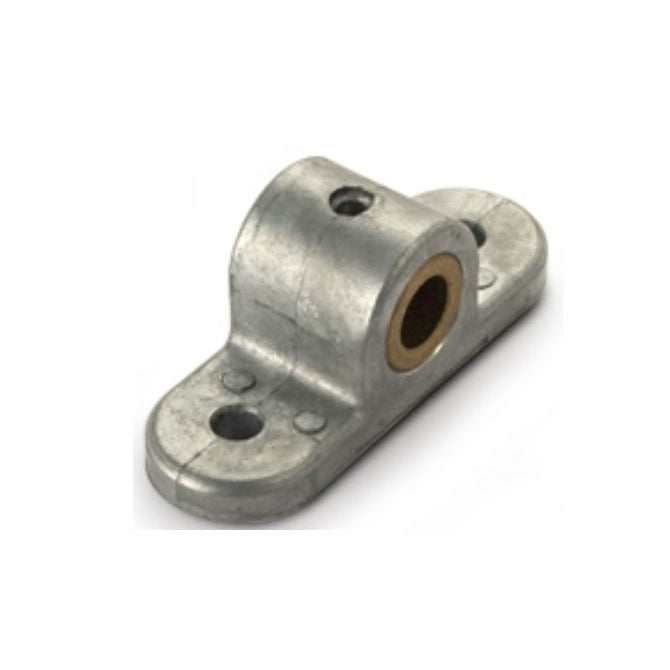

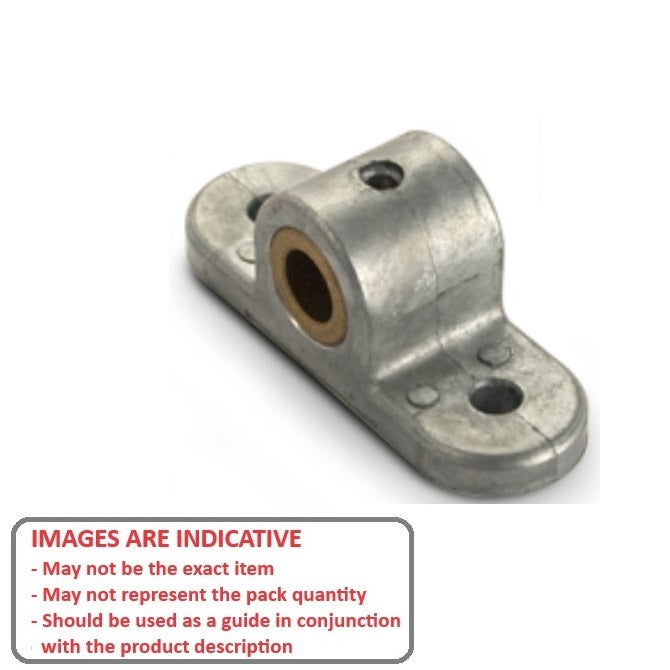

Housings - Pillow Block Die CastPillow Block Die Cast Housings. Zinc Die Cast Housings with or without Sintered Bronze Bearings.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Lubricable.
- With or without standard sintered bronze bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

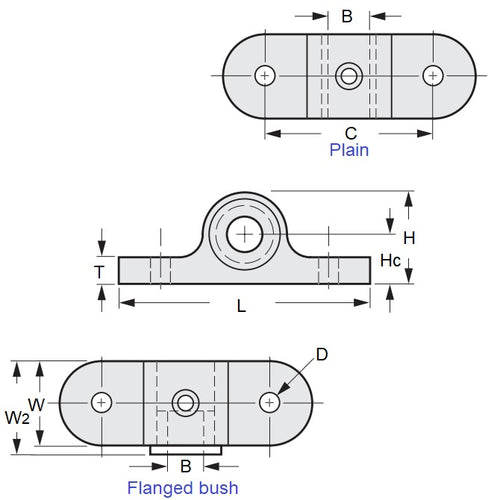

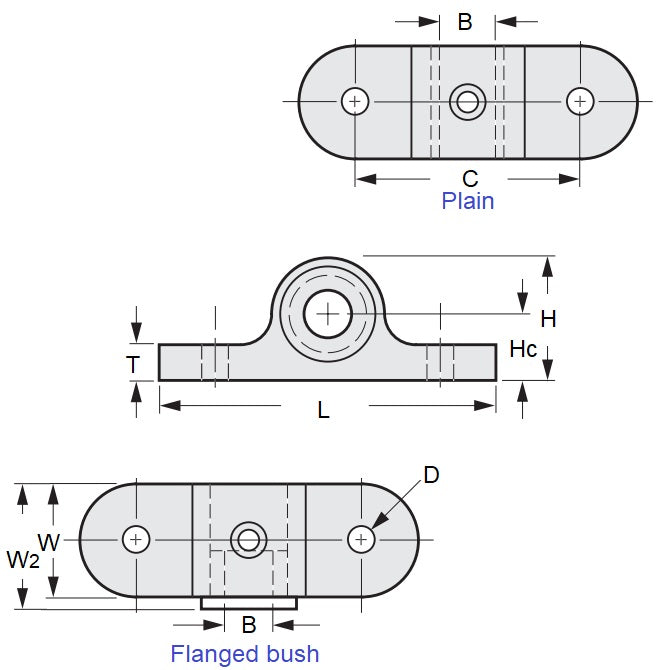

- Bore Diameter
:
9.525
mm
(Equiv. 0.375 in.) - Length (L)
56.356
mm
(Equiv. 2.219 in.) - Bolt Hole Centres (c)
38.100
mm
(Equiv. 1.5 in.) - Width (W) 19.050 mm
- Overall Width (W2) 20.638 mm
- Height (H) 20.638 mm
- Centre Height (Hc) 11.113 mm
- Base Height (T) 4.762 mm
- Bolt Hole Diameter 4.762 mm
- Sintered Bearing Type Flanged
- Material Die Cast Zinc
Product Compliance and Data
Additional Resources
Cross References
- A 7Z 4-F2612
- A7Z4F2612
- A7Z4-F2612
