Miniature Bearings Australia
CMM010-13-042C-R60 - Datasheet
MBA
Category Information

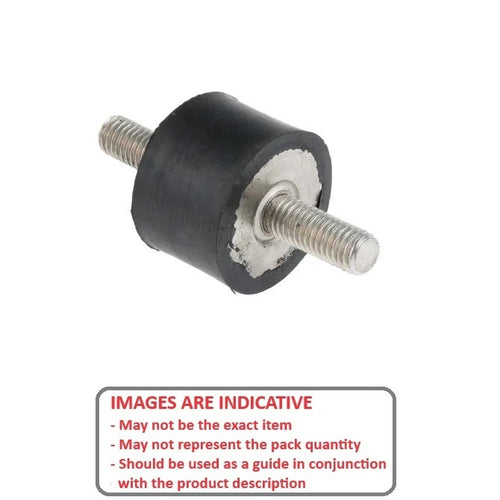

Mounts - Bobbin - MaleMale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

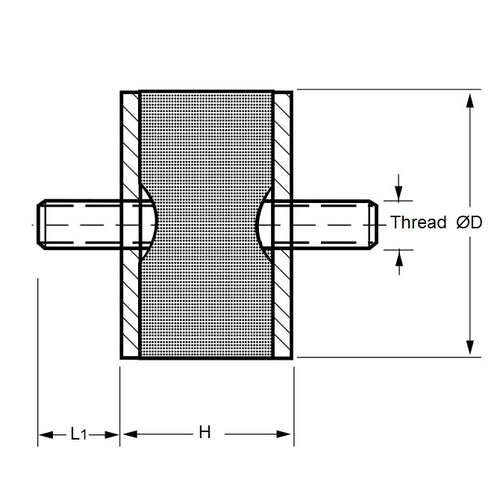

- Nom. Body Diameter (D)
:
9.5
mm
(Equiv. 0.374 in.) - Body Height (H)
12.7
mm
(Equiv. 0.5 in.) - Thread Size 8-32 UNC (32 TPI)
- Shore Hardness 60
- Thread Length (L1) 12.7 mm
- Compression Load 0.34 (0.7) Kg (lbs)
- Configuration Male to Male
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- VM801
- VM-80-1
