CP-091-286-54-003-R1-SC - Datasheet

MBA

Category Information

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : Pilot Bore 9.144 mm
  • Bore (b2) 28.575 mm
  • OD (D) 53.975 mm
  • Length (L) 82.550 mm
  • Screw 1/4-28 x 15.87 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® CC-155
    • CC155
    View full details

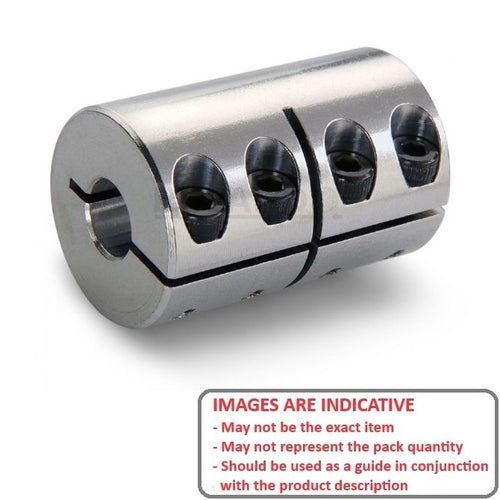

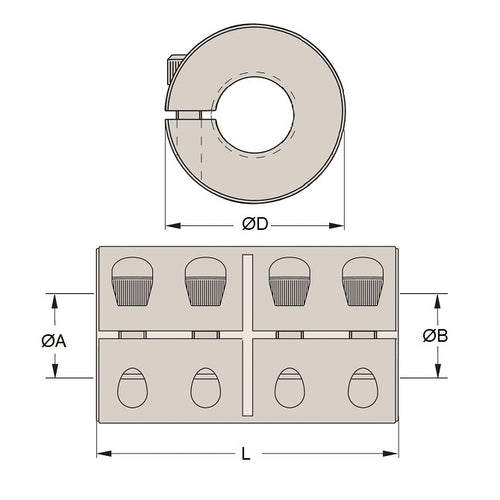

    CP-091-286-54-003-R1-SCDiagramCP-091-286-54-003-R1-SCImage
